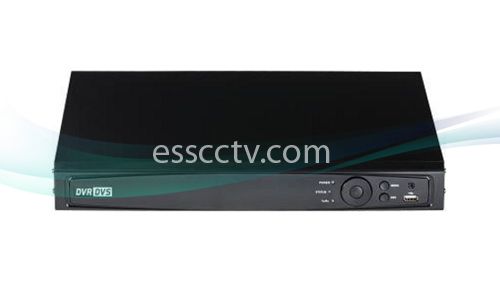

TVST-AR324-4 AR Series - 4CH Quad-brid DVR System supports 1080P HD-TVI

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for TVST-AR324-4 AR Series - 4CH Quad-brid DVR System supports 1080P HD-TVI: TVST-AR324-4

Additional Image for TVST-AR324-4 AR Series - 4CH Quad-brid DVR System supports 1080P HD-TVI:

Model: TVST-AR324-4
Item #: 2062

MSRP: ~~$160.00~~
Our Price:

$125.00

(You save: $35.00)

Connectable to HDTVI, AHD and analog cameras

Up to 1-ch 1080p IP cameras input

Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI signal

One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs

Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p

Simultaneous HDMI/VGA output at up to 1920×1080 resolution

Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view output only

One SATA interface (up to 6 TB capacity per HDD)

4ch synchronous playback

Smart search for efficient playback

Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

Supports 2-ch line crossing detection and intrusion detection

VQD (Video Quality Diagnostics)

Unlock pattern for device login for the admin and clear-text password available

GUID file can be exported for password resetting and imported for finding the forgotten password

Supports PTZ control via Omnicast VMS of Genetec protocol

Cloud P2P & DDNS (Dynamic Domain Name System) for easy network management

Output bandwidth limit configurable

Video/Audio input
Video compression	H.264+/H.264
Analog video input	4-ch
Analog video input	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input	1080p25, 1080p30, 720p25, 720p30
CVBS input	Support
IP video input	1-ch
IP video input	Up to 1080p resolution
Audio compression	G.711u
Audio input/Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution	When 1080p Lite mode not enabled: 1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame rate	Main stream: When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Frame rate	Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps to 6 Mbps
Audio output	1-ch, RCA (Linear, 1 KΩ)
Audio bit rate	64 Kbps
Dual stream	Support
Stream type	Video, Video & Audio
Synchronous playback	4-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA	1 SATA interface
Capacity	Up to 6 TB capacity for each disk
External interface
Network interface	1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface	2 × USB 2.0
Serial interface	RS-485 (half-duplex)
General
Power supply	12 VDC
Consumption (without HDD)	≤ 15 W
Working temperature	-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity	10% to 90%
Dimensions (W × D × H)	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD)	≤ 2 kg (4.4 lb)
