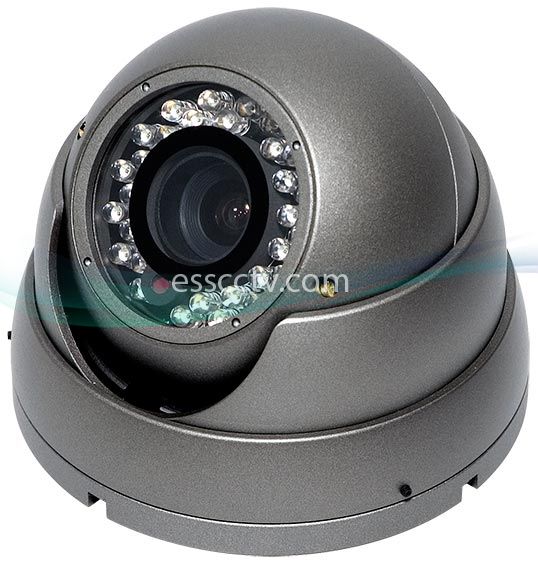

EYEMAX Outdoor Dome IR Camera EFFIO DSP, EX-VIEW CCD, 700 TVL, 35 SMART IR, Eyeball Type
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
IB-6335MV
Item #: 206
Manufacturer: Eyemax
MSRP:
$160.00
Our Price:
$109.00
(You save: $51.00)
- 3-Axis Construction : By adjusting '3-Axis' control, you get a straight view regardless whether camera is installed on a wall or ceiling
- SMART IR : wide spreading 35 IR LED preventing white out at the center of image.
- 1/3" Sony Super EXVIEW HAD II color CCD sensor
- High Resolution - 700 (H) TV Line in Color
- Minimum Illumination - 0 Lux with IR on
- 2.8~12mm Vari-focal Lens Installed
- DC 12V only
 |
High-Res 700 TV Line
The camera is powered by Sony Effio-E chipset that is embodied the top grade of the world at 700 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
3-AXIS CAMERA CONSTRUCTION
 Where most dome cameras are 2-Axis, the 3-Axis feature included in these models also insures that you can maneuver the camera at an angle that would be most beneficial when viewing images from these cameras.
|
EXTERNAL LENS CONTROL
 External lens control screws on the camera make installation and setting up the camera easier. The included 2.8 ~ 12mm lens and 3-axis construction gives you the best shot at any angle.
|
LOW CEILING INSTALLATION. NO PROBLEM
 With its unique design, there is no trouble to angle the camera straight-forward on low ceiling. This cannot be done with ordinary dome camera.
|
| Effio-E™ |
| 700 TV Line |
| Sony 1/3 inch ExView HAD CCD II |
| 1020(H) × 508(V) 480K Pixel |
| 976(H) x 494(V) 520K Pixel |
| 2:1 Interlace |
| Horizontal : 15.734Khz / Vertical : 59.94Hz |
| More than 52 dB (AGC off) |
| CVBS : 1.0Vp-p / 75Ω |
| 0 Lux (with IR On) |
| ATW |
| Auto / Manual / 1/60 sec ~ 1/100,000 sec (NTSC) |
| Auto |
| -10°C~+50°C(14°F ~ 122°F) / 30% ~ 80% RH |
| -20°C~+60°C(-4°F ~ 140°F) / 20% ~ 90% RH |
| DC 12V |
| 5.0”(Ø) x 4.0”(H) / Metal Case |
