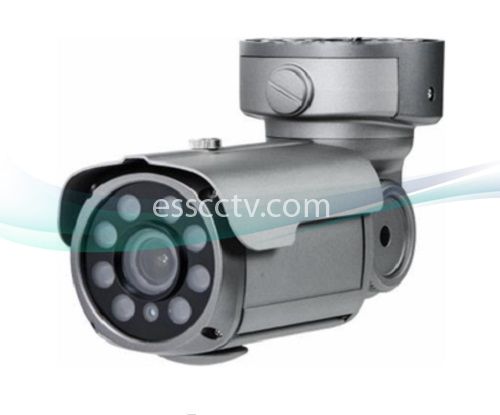

Eyemax TIR-M2344V HD-TVI 1080P Outdoor IR Bullet Camera w/ 8 COB IR LED / Motorized Lens / Dual Power
Images are for illustration purpose and may not show the actual product.
Model:
TIR-M2344V-B
Item #: 2055
Manufacturer: Eyemax
MSRP:
$300.00
Our Price:
$255.00
(You save: $45.00)
- HD-TVI - High Definition Transport Video Interface 1080p FULL HD Flawless Video
- 1/2.9” Sony CMOS
- 2.8~12mm Auto-Iris Vari-Focal Lens
- 0 Lux at IR On (8 pcs of COB IR LED)
- Upgraded Waterproof Housing (IP68 Rating)
- Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
- RS-485 Option
- Easy Installation
- AC24V / DC 12V Dual Power
| Specification |
|
| Resolution |
1080P, 720P, 720P CROP |
| Sensor |
1/2.9 inch SONY CMOS (IMX-222) |
| Total Pixels |
2000(H) x 1241(V) = 2,482,000 |
| Effective Pixels |
1944(H) X 1092(V) = 2,122,648 |
| Scanning System |
PROGRESSIVE |
| S/N (Y signal) |
More than 52 dB (AGC Off) |
| Video Output |
TVI / (CVBS: 1.0Vp-p (75ohm) |
| Min.Illumination |
0 Lux at IR On |
| White Balance |
AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed |
AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| SENS_UP |
OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR |
OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT |
OFF / WDR / BLC / HLM |
| Day & Night |
AUTO (Day <--> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / FLIP / FREEZE |
OFF / ON |
| MOTION / DEFOG |
OFF / SET |
| D.ZOOM |
0~127 Level |
| Brightness |
ADJUSTABLE (0 ~ 20 STEP) |
| Sharpness |
ADJUSTABLE (0 ~ 10 STEP) |
| Smart IR |
ADJUSTABLE (0 ~ 20 STEP) |
| COMM |
RS-485 (PELCO-D) |
| Language |
ENG, CHN, CHN(S), JPN, KOR |
| Temperature/Humidity |
Operating (-10'C~+50'C / 30%~80% RH) / Storage (-20'C~+60'C / 20%~90% RH) |
| Power |
AC24V / DC12V Dual Power |
