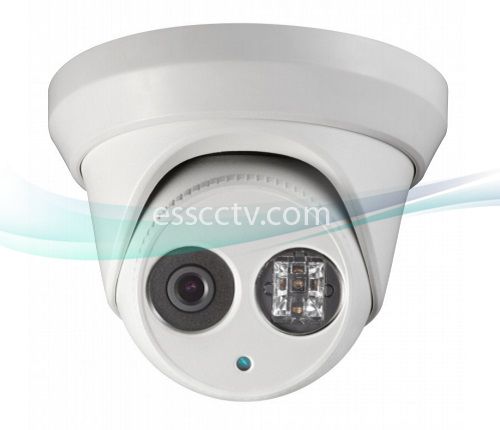

· 2 Megapixel high-performance CMOS
· Analog HD output, up to 1080P resolution
· 2.8mm Lens
· True Day/Night
· OSD menu, DNR, Smart IR
· True WDR, up to 120dB
· EXIR technology, up to 20m IR distance
· IP66 weatherproof
· CoC Compatible (Control Over Coax)
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1928(H)*1088(V) |
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25s to 1/50,000s |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0°- 360°; Tilt:0°- 75°; Rotate: 0°- 360° |
| Synchronization | Internal Synchronization |
| WDR | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | ＞62dB |
| Menu | |
| AGC | Support |
| D/N Mode | Color/BW/SMART |
| White Balance | ATW/ MWB |
| BLC | Support |
| Functions | Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR |
| General | |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 5W |
| Protection Level | IP66 |
| IR Range | Up to 20m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 91mm×82.6mm×68.3mm (3.58"×3.25"×2.69") |
| Weight | Approx. 350g (0.77lb) |
