> Item #2048

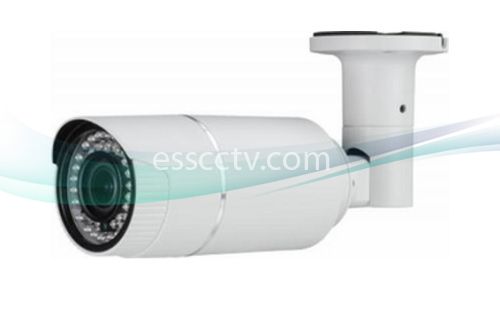

TIR-B3042V HD-TVI 3.2MP IR Bullet Camera w/ 42IR LED & 2.8~12mm VF Lens

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: TIR-B3042V
Item #: 2048

MSRP: ~~$120.00~~
Our Price:

$85.00

(You save: $35.00)

Default output is 3M-TVI Video,connect the switching cables to switch to 960H CVBS video output

Image Sensor	1/3" Mega Pixel Sensor
Effective Pixels	3.2 Mega Pixels
Built-in Lens	3 Mega Pixel Lens
Signal System	PAL/NTSC
Horizontal Resolution	PAL: 2304×1296P 18F/S NTSC: 2304×1296P 18F/S
Sync. System	Internal Sync.
Sensor Area	5.07×3.38mm
Video Output	1.0Vp~p75Ω
S/N Ratio	More than 50dB (AGC OFF)
White Balance	Auto Tracking White Balance
Shutter Speed	1/25~150,000Sec.
Illumination for Infrared Switching	3 Lux
Infrared Wavelength	850nm
Mimimum Illumination	0Lux(Infrared Lamps Turn on)
IR Leds	42pcs
IR Radiation Distance	35m
Weather-proof	IP66
Working Temperature	−10°C~50°C
Storage Temperature	−20°C~60°C
Power Requirement	DC12V, Max Power Comsumption Less Than 5W (When the infrared lamps turn on)
Weight	1.18kg
