> Item #2047

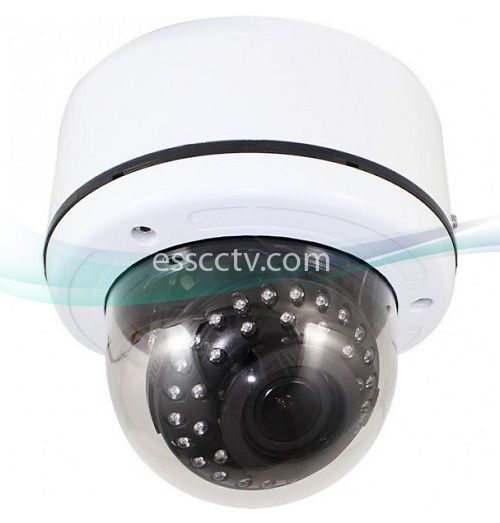

TIV-B3032V HD-TVI 3MP 1080p Outdoor Dome Camera, 2.8-12mm VF Lens, 35 IR LED

Images are for illustration purpose and may not show the actual product.

Model: TIV-B3032V
Item #: 2047

MSRP: ~~$130.00~~
Our Price:

$100.00

(You save: $30.00)

Default output is 3M-TVI Video,connect the switching cables to switch to 960H CVBS video output

Image Sensor	1/3" Mega Pixel Sensor
Effective Pixels	3.2 Mega Pixels
Built-in Lens	3 Mega Pixel Lens
Signal System	PAL/NTSC
Horizontal Resolution	PAL:2304×1296P 18F/S NTSC:2304×1296P 18F/S
Sync. System	Internal Sync.
Sensor Area	5.07×3.38mm
Video Output	1.0Vp~p75Ω
S/N Ratio	More than 50dB (AGC OFF)
White Balance	Auto Tracking White Balance
Shutter Speed	1/25~150,000Sec.
Illumination for Infrared Switching	3 Lux
Infrared Wavelength	850nm
Mimimum Illumination	0Lux(Infrared Lamps Turn on)
IR Leds	35pcs
IR Radiation Distance	30m
Weather-proof	IP67
Working Temperature	−10°C~50°C
Storage Temperature	−20°C~60°C
Power Requirement	DC12V, Max Power Comsumption Less Than 5W (When the infrared lamps turn on)
Weight	0.84kg
