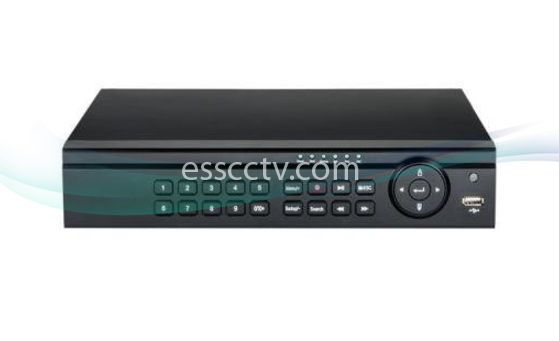

IP Power NVST-TS5404-04E TS Series - 4CH NVR for IP cameras up to 5MP w/ 4 CH PoE & 4K OUTPUT
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
NVST-TS5404-04E
Item #: 2021
MSRP:
$230.00
Our Price:
$179.00
(You save: $51.00)
- Support 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 high profile compression format to get high-quality
- video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
- operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 4 CH simultaneous playback
- Search : time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and
- configuration
- 4 PoE network ports, support IPC direct connection to NVR; support
- PoE power supply
- Dual stream technology for local storage with high definition, remote
- network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
| System |
| Compression |
Standard H.265 |
| OS |
Embedded Linux |
| Video |
| Network Input |
4 CH IPC input |
| Network Access Bandwidth |
40Mbps |
| Network Access Format |
5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps |
| Output |
HDMI × 1 : 4K × 2K / 1920 × 1080 / 1280 × 1024
VGA × 1 : 1920 × 1080 / 1280 × 1024 |
| Audio |
|
| Network Input |
4 CH IPC audio input |
| 2-way Audio |
RCA × 1 |
| Local Output |
RCA × 1 |
| Record |
| Record Stream |
Dual stream recording |
| Resolution |
5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Mode |
Manual, timer, motion, sensor |
| Playback |
| Simultaneous Playback |
Max 4 CH |
| Search |
Time slice / time / event / tag search |
| Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
| Function |
Play, pause, FF, FB, digital zoom, etc. |
| Alarm |
| Mode |
Manual, sensor, motion, exception |
| Input |
Support IPC alarm input |
| Output |
Support IPC alarm output |
| Triggering |
Record, snap, preset, e-mail, etc. |
| Network |
| Interface |
RJ45 10 / 100 Mbps × 1 |
| PoE Port |
RJ45 × 4 |
| Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Web Client |
Max 10 users online |
| Mobile Device |
| OS |
iOS, Andriod |
| Storage |
| HDD |
SATA × 1, max 6T per HDD |
| Backup |
| Local Backup |
U disk, USB mobile HDD |
| Network Backup |
Yes |
| Port |
| USB |
USB 2.0 × 2 ( one in the front panel and the other in the rear panel ) |
| Remote Controller |
Included |
| Others |
| Power Supply |
DC48V |
| Consumption |
≤ 5W ( without HDD ) |
| Dimensions (mm) |
300 × 248 × 52 ( W × D × H ) |
| Work Environment |
−10 ~ 50 ºC, 10% ~ 90% humidity |
