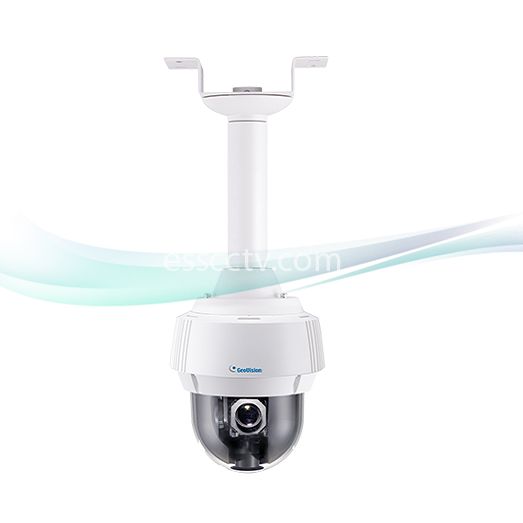

GV-PPTZ7300 is a 2-in-1 panoramic PTZ IP camera that includes a 5 MP fisheye panoramic camera and a 2 MP IP Speed Dome. The fisheye camera allows you to monitor all angles of a location, while the speed dome can instantly point toward an area with just one click on the fisheye live view. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface.
| Brand | GeoVision |
| Model | GV-PPTZ7300 |
| Image Sensor | FE: 1/2.5’’ progressive scan CMOS SD: 1/2.86’’ progressive scan CMOS |
| Megapixel | 7 MP |
| Lens | FE: 1.32 mm SD: 5.1 ~ 51 mm |
| Video | H.264, MJPEG |
| Resolution | FE: 2560 (H) x 1920 (V) SD: 1920 (H) x 1080 (V) |
| Type | Pan/Tilt/Zoom + Fisheye |
| Day and Night | FE: Yes (Electronic) SD: Yes (with removable IR Cut Filter) |
| Shutter Time | FE: Automatic, Manual (1/5 ~ 1/8000 sec.) SD: Automatic, Manual (1/6 ~ 1/60000 sec.) |
| Minimum Illumination | (Color) FE: 0.15 Lux, SD: 0.5 Lux (B/W) FE: 0.15 Lux, SD: 0.1 Lux |
| Two-Way Audio | Yes |
| Audio | G.711, AAC (optional) |
| IP Rating | IP67 |
| Vandal Resistance | IK10 |
| WDR | Yes |
| Zoom | SD: 10x optical zoom and 32x digital zoom |
| Network | Ethernet (10/100 Baseâ€T), RJâ€45 Connector |
| POE | GV-PA901 POE++ |
| Power | DC 24V / AC 24V / High PoE (PoE++, 40 W) |
| Power Consumption | Max 40W |
| Operating Temperature | -40°C ~ 50°C (â€40°F ~ 122°F) |
| Dimensions | Ø8.332” x 10.709” ( 211.63 x 272.00 mm) |
| Weight | 8.27 lb (3.75 kg) |
| Warranty | 2 Year |
