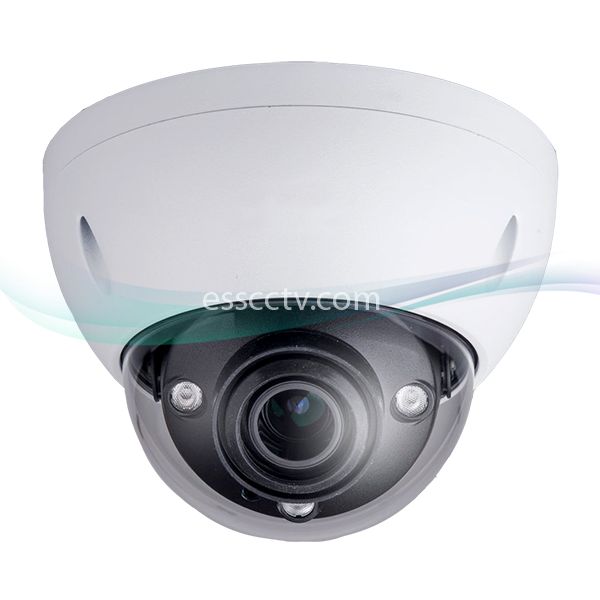

Model

HCC7221E-IR-Z

Camera

Image Sensor

1/2.8″ 2.1Megapixel CMOS

Effective Pixels

1945(H)×1097(V)

Electronic Shutter

1.3s~1/30,000s

1s~1/30,000s

Video Frame Rate

25/50fps@720P; 25fps@1080P

30/60fps@720P; 30fps@1080P

Synchronization

Internal

Min. Illumination

0.005Lux/F1.4, 0Lux IR on

Video Output

1-channel BNC HDCVI high definition video output & CVBS standard definition video output

SD Tester out

Camera Features

Max. IR LEDs Length

175ft, Smart IR

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

2D/3D

OSD Menu

Support

Lens

Focal Length

2.7~12mm

Angle of View

H: 95º~36º

Lens Type

Motorized / Auto Iris

Mount Type

Φ14

Auxiliary Functions

Alarm

1 channel in/out

Audio

1 channel in

Heater

Optional

General

Power Supply

AC24V±25% / DC12V±25%

Power Consumption

Max 12.5W

Max 21.5W (HDBW3231E-ZH)

Working Environment

-30°C~+60°C / Less than 95%RH (no condensation)

-40°C~+60°C / Less than 95%RH (no condensation) (HDBW3231E-ZH)

Transmission Distance

Over 500m via 75-3 coaxial cable

Ingress Protection

IP67, IK10

Dimensions

Φ159mm×117.9mm

Weight

0.9kg

Material

Metal
