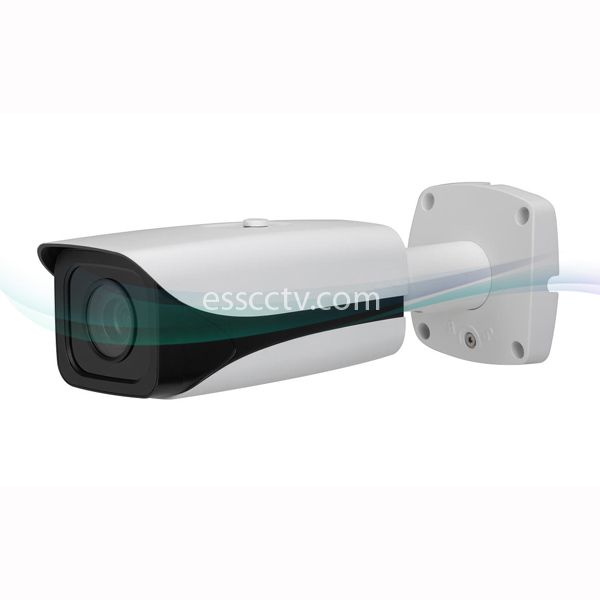

Model

HCC7120E-IR-Z

Camera

Image Sensor

1/2.8″ 2.4Megapixel CMOS

Effective Pixels

1984(H)×1225(V)

Electronic Shutter

1/3s~1/100,000s

Video Frame Rate

25/30/50/60fps@720P; 25/30fps@1080P

Synchronization

Internal

Mini. Illumination

0.05Lux@F1.2(AGC ON), 0Lux IR on

Video Output

1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch)

Tester out (1-channel BNC HDCVI high definition video output / CVBS standard definition video output)

Camera Features

Max. IR LEDs Length

50m, Smart IR

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

2D/3D

OSD Menu

Support

Lens

Focal Length

2.7~12mm

Angle of View

H: 105.5º~32.9º

Lens Type

Motorized / Auto Iris

Mount Type

14

Auxiliary Functions

Alarm

1 channel in/out

Audio

1 channel in

Heater

Optional

General

Power Supply

AC24V±10% / DC12V±10%

Power Consumption

Max 7.4W

Max 13W (HFW3220E-ZH)

Working Environment

-30°C~+60°C / Less than 95%RH (no condensation)

-40°C~+60°C / Less than 95%RH (no condensation) (HFW3220E-ZH)

Transmission Distance

Over 300m via 75-3 coaxial cable

Ingress Protection

IP66

Dimensions(W×D×H)

273.3mm×94.8mm×94.8mm

Weight

1.2kg
