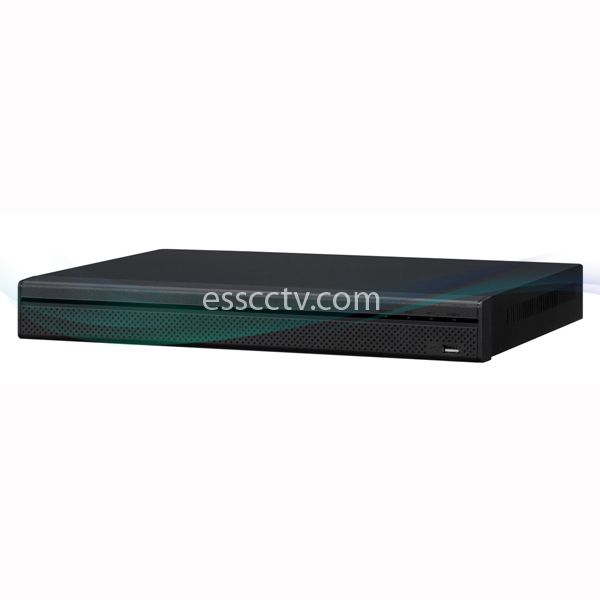

Model

HCVR5204A-S2

HCVR5208A-S2

HCVR5216A-S2

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel, BNC

8 channel, BNC

16 channel, BNC

Standard

HD-CVI

  1080P/720P HDCVI Camera

Analog

NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

IP

  1080P/720P/D1/CIF IP Camera

Audio

Input

4 channel, BNC

Output

1 channel, BNC

Two-way Talk

Reuse audio input/output channel 1

Display

Interface

1 HDMI, 1 BNC

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

1/4/8/9

1/4/8/9/16

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio

Compression

H.264/G.711

Record

Rate

Main

Stream:

1080P(1~15fps)/720P/960H/D1 (1~25/30fps)

Extra

Stream

  CIF/QCIF(1~25/30fps), D1(1~6/7fps)

Bit Rate

96~4096Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection&Alarm

Trigger Events

Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer

& Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

8 channel

8 channel

16 channel

Alarm Output

3 channel

Playback & Backup

Sync Playback

1/4

1/4/8

1/4/8/16

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Internal SATA burner/Network

Network

Ethernet

RJ-45 port (10/100M)

RJ-45 port (10/100M/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

2 SATA ports, up to 8TB

Auxiliary Interface

USB Interface

2 ports(1 Rear), USB2.0

RS485

1 port, For PTZ control

General

Power Supply

DC12V/4A

DC12V/5A

Power Consumption

15W(without HDD)

Working Environment

-10°C ~+55°C / 10%~90%RH / 86~106kpa

Dimension(W×D×H)

1U, 375mm×285mm×50mm

Weight

2.35KG(without HDD)
