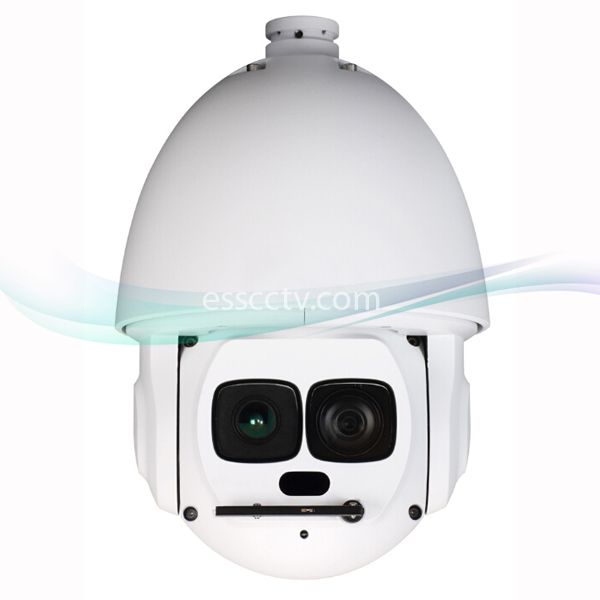

Model

PDN6A240HN-LI

Camera

Image Sensor

1/2.8″ Exmor CMOS

Effective Pixels

1944(H) x 1092(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)

S/N Ratio

More than 50dB

Video Output

BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

EIS

Support

Defog

Support

Lens

Focal Length

7.9mm ~ 316mm (40x Optical zoom)

Max Aperture

F1.6 ~ F6.1

Focus Control

Auto / Manual

Angle of View

H: 41.5° ~ 1.1°

Close Focus Distance

100mm~ 1000mm

IR Light

Laser Light Control

Auto / Manual

Laser Distance

500m

Angle of Laser Light

2° ~ 60°

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 240° /s; Tilt: 200° /s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in

the specified period

Time Task

Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480)

/CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)

Sub Stream 1

D1/CIF(1 ~ 25/30fps)

Sub Stream 2

720P/D1/ CIF (1 ~ 25/30fps)

Bit Rate

H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression

G.711a / G.711u(32kbps)/ PCM(128kbps)

Interface

1/1 channel In/Out

Intelligent Function

Auto Tracking

Single-scene, multiple-scene, panorama-scene

IVS(optional)

Tripwire,  Intrusion,   Cross   Warning  Zone,  Perimeter  Protection, Loitering Detection, Abandoned Object Detection, Missing Object

Detection, Illegal Parking, Fast Moving and etc.

Tracking Trigger Mode

Manual / Auto (alarm triggered)

Tracking Trigger Event

Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,

Bonjour, 802.1x

Compatibility

ONVIF PSIA CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

Alarm

7/2 channel In/Out

General

Power Supply

AC24V/3A(±16%), Hi-POE

Power Consumption

20W, 43W (IR on)

Working Environment

-40ºC ~ 70ºC / Less than 90% RH

Ingress Protection

IP67

Wiper

Yes

Dimensions

Φ252(mm) x 357(mm)

Weight

6.75kg
