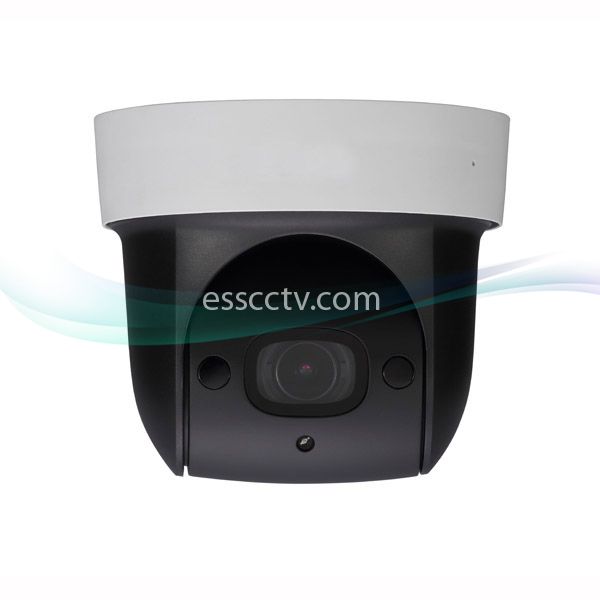

Model

PDN29S204GN

PDN29S204GN-W

Camera

Image Sensor

1/2.8” CMOS

Effective Pixels

1920(H) x 1080(V), 2Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 50dB

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

2.7mm~11mm(4x Optical zoom)

Max Aperture

F1.6~ F2.8

Focus Control

Auto / Manual

Angle of View

H: 112.5° ~ 39°

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in

the specified period

IR Distance

30m

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF

(352×288/352×240)

Frame Rate

Main Stream

1080P(1 ~ 25/30fps)/ 720P (1 ~ 50/60fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Audio

Compression

G.711a / G.711Mu(32kbps)/ PCM(128kbps)

Interface

Built-in Mic

Network

Ethernet

RJ-45 (10/100Base-T)

WIFI

N/A

Support

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,

Bonjour, 802.1x

ONVIF

ONVIF Profile S

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

General

Power Supply

DC12V, POE

DC12V

Power Consumption

10W, 13W (IR on)

Working Environment

-30ºC ~ 60ºC / Less than 90% RH

Dimensions

Φ132.7 (mm) x 116.5 (mm)

Weight

0.95kg
