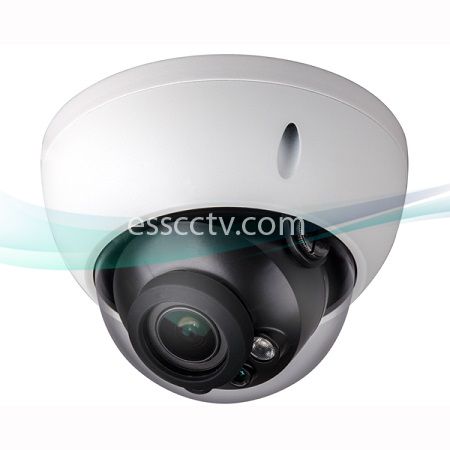

Model

PDN22T204G

Camera

Image Sensor

1/2.7” CMOS

Effective Pixels

1920(H) x 1080(V), 2Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 50dB

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

2.7mm~11mm(4x Optical zoom)

Max Aperture

F1.6~ F2.8

Focus Control

Auto / Manual

Angle of View

H: 93.5° ~ 30.24°

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in

the specified period

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF

(352×288/352×240)

Frame Rate

Main Stream

1080P(1 ~ 25/30fps)/ 720P (1 ~ 50/60fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Audio

Compression

G.711a / G.711Mu(32kbps)/ PCM(128kbps)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,

Bonjour, 802.1x

ONVIF

ONVIF Profile S

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

General

Power Supply

DC12V, POE

Power Consumption

10W

Working Environment

-20ºC ~ 60ºC / Less than 90% RH

Ingress Protection

IP66 & IK10

Dimensions

Φ132.7 (mm) x 116.5 (mm)

Weight

0.95kg
