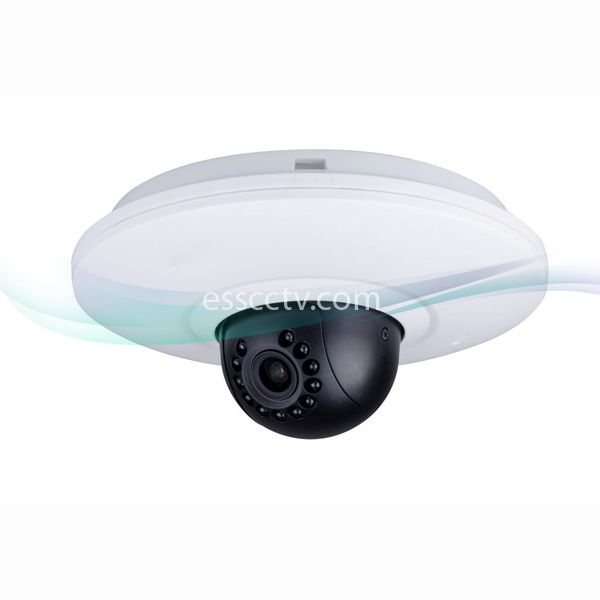

Model

HNC5220PT–W

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3(4)~1/100000

Min. Illumination

0.01Lux/F1.2(color)

S/N Ratio

More than 50db

Video Output

N/A

Camera Features

Max. IR LEDs Length

15m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

Off/BLC/HLC/DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Digital Zoom

3x

Lens

Focal Length

3.6mm

Max Aperture

F1.2

Focus Control

Manual

Angle of View

H:88°

Lens Type

Fixed lens

Mount Type

Board-in Type

PT

Pan/ Tilt Range

Pan: 0°~±180°; Tilt: 0°~90°

Preset Speed

100°/s

Preset

25

Video

Compression

H.264/H.264H/MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 32K ~ 8192Kbps

Audio

Compression

G.711a/G.711u/PCM

Interface

Bulit-in Mic

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

Wi-Fi(IEEE802.11b/g/n)

50m(open field)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF PSIA CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V

Power Consumption

<5W

Working Environment

-30℃~+50℃, Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Dimensions

Φ130mm×58.4mm

Weight

0.25kg
