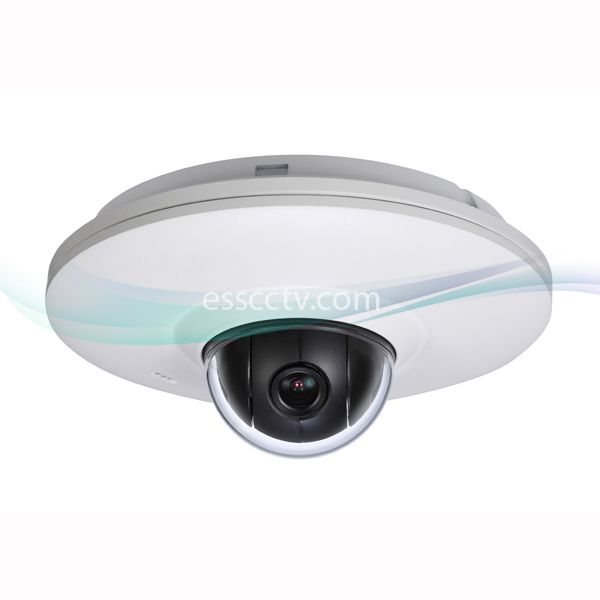

Model

HNC5230PT

Camera

Image Sensor

1/3” 3Megapixel progressive scan CMOS

Effective Pixels

2048(H)x1536(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3(4)~1/10000

Min. Illumination

0.01lux/F1.2(color)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

N/A

Day/Night

Auto(Electronic)/Color/B/W

Backlight Compensation

Off/BLC/HLC/DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Digital Zoom

3x

Lens

Focal Length

3.6mm

Max Aperture

F1.2

Focus Control

Manual

Angle of View

H:72.5°

Lens Type

Fixed lens

Mount Type

Board-in Type

PT

Pan/ Tilt Range

Pan: 0°~±180°; Tilt: 0°~90°

Preset Speed

100°/s

Preset

25

Video

Compression

H.264/ MJPEG

Resolution

3M(2048´1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576

/704×480) / CIF(352×288/352×240)

Frame Rate

Main Stream

3M(1~20fps)/1080P/720P(1 ~ 30fps)

Sub Stream

D1/CIF(1 ~ 30fps)

Bit Rate

H.264: 32K ~ 8192Kbps

Audio

Compression

G.711a/G.711u/PCM

Interface

Bulit-in Mic

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF,PSIA,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE(802.3af)

Power Consumption

<4.5W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Dimensions

Φ130mm×57.5mm

Weight

0.25kg
