Model

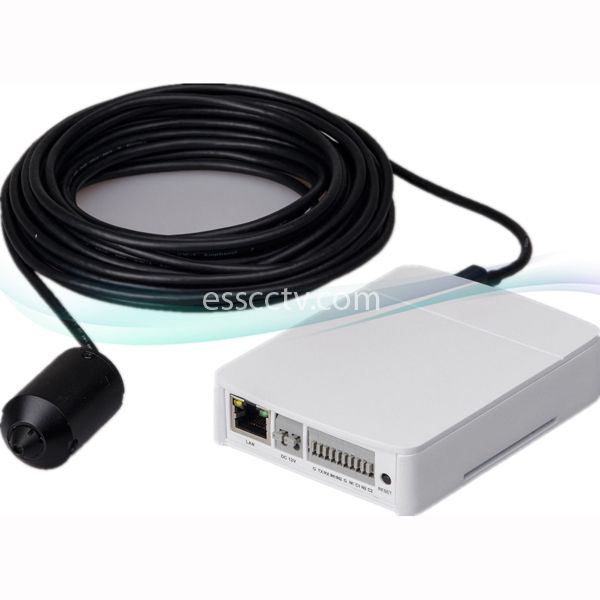

DH-IPC-HUM8101P

DH-IPC-HUM8101N

Camera

Image Sensor

1/3” 1.3Megapixel progressive scan CMOS

Effective Pixels

1280(H)x960(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Auto/Manual, 1/4~1/100000s

Min. Illumination

0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

N/A

Day/Night

Auto(Electronic)/Color/B/W

Backlight Compensation

BLC / HLC/WDR(100dB)

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm

Max Aperture

F2.8

Focus Control

Manual

Angle of View

77°

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/MJPEG

Resolution

1.3M(1280×960)/720P(1280×720)/D1(704×576)/CIF(352×

288)

Frame Rate

Main Stream

1.3M/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Third Stream

720P/ D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 48K ~ 8192Kbps

Audio

Compression

G.711a / G.711u/PCM

Interface

1/1 channel In/Out

Smart Function

Smart detection

Tripwire

Intrusion

Scene change

Missing/Abandoned

Audio detect

Face detect

Network

Ethernet

RJ-45 (10/100/1000Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF, PSIA,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

RS485

N/A

Alarm

1/1 channel In/Out

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

Max 7W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

N/A

Dimensions

109.7mm×82.8mm×24.0mm

Weight

0.46Kg
