Model

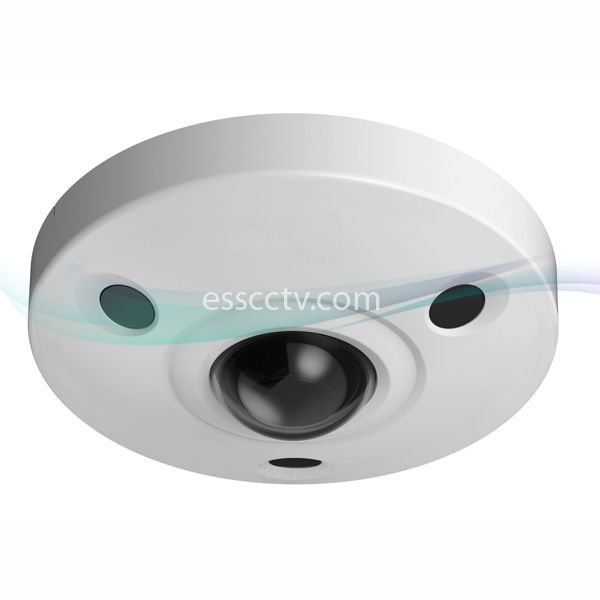

HNC74120-IR

Camera

Image Sensor

1/2.3” 12M progressive scan CMOS

Effective Pixels

4000（H）*3000（V）

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3~1/10000

Min. Illumination

0.01Lux/F2.2(Color), 0Lux/F2.2(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

15m

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC/ HLC/DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

1.57mm

Max Aperture

F2.2

Focus Control

Manual

Angle of View

185°/185°/185°

Lens Type

Manual

Mount Type

Board-in Type

Video

Compression

H.264H/MJPEG/JPEG

Resolution

12M(4000×3000)/8M(2880×2880)/6M(2880×2160)/3M(2048×153

6)

Frame Rate

Main Stream

12M(1~15fps)/3M (1 ~ 30fps)

Sub Stream

D1/CIF(1 ~ 30fps)

Bit Rate

40Kbps~8192Kbps

Correct Mode

Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures

Audio

Compression

G.711a/G.711u/PCM

Interface

1/1 channel In/Out(Built in Mic)

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE, IPv4/v6,SNMP,QoS,UPnP,NTP

Compatibility

ONVIF,PSIA,CGI

Max. User Access

20users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD

RS485

N/A

Alarm

2/1 channel In/Out

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

<13W

Working Environment

-30°C~+60°C, Less than 95%RH

Ingress Protection

IP67

Vandal Resistance

IK10

Dimensions

Φ150mm x 50.7mm

Weight

0.58kg(0.86kg with packaging )
