Model

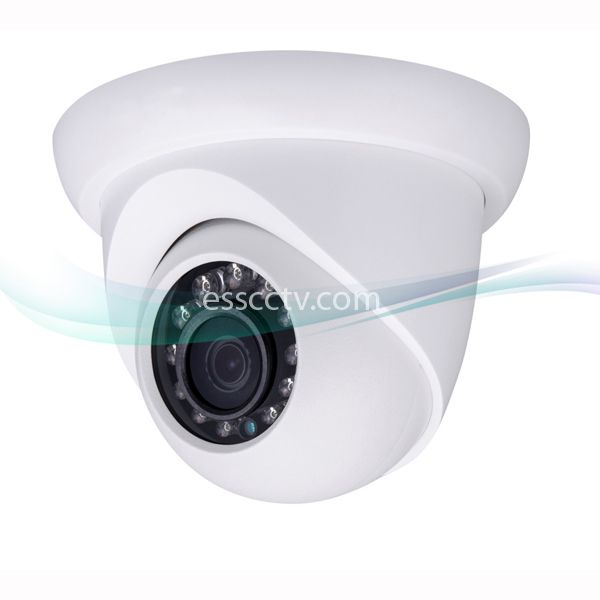

HNC3330S-IR

Camera

Image Sensor

1/3” 3Megapixel progressive scan CMOS

Effective Pixels

2048(H) ï‚´ 1536(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3s~1/30000s

Min. Illumination

0. 045Lux/F2.1(Color), 0Lux/F2.1(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

30m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

2.8mm

Max Aperture

F2.1(F2.0, F1.9)

Focus Control

Manual

Angle of View

H: 81°(92°, 55°)

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/ H.264H/ H.264B/ MJPEG

Resolution

3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)

Frame Rate

Main Stream

3M(1 ~ 20fps)/1080P(1 ~ 25/30fps)

Sub Stream

D1(1 ~ 25/30fps)

Bit Rate

H.264: 4kbps～8192bps

Corridor Mode

Support

Audio

Compression

N/A

Interface

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS

Compatibility

ONVIF, CGI

Max. User Access

20 users
