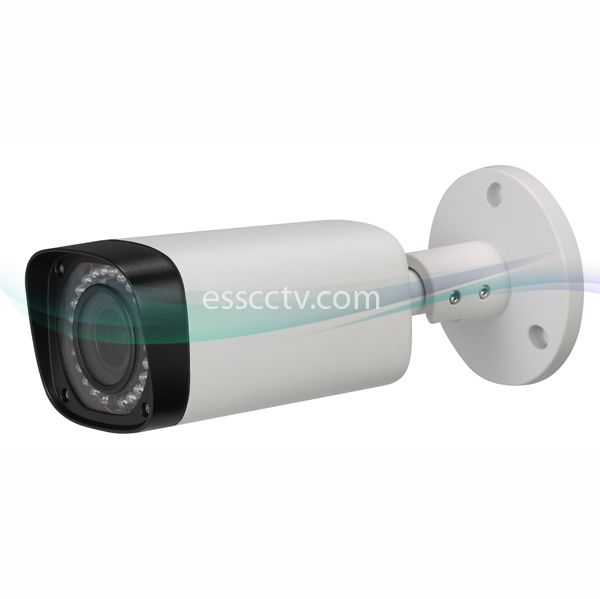

SavvyTech HNC3130R-IR-Z 3MP IP Bullet Camera with Motorized 2.7-12mm Lens
Images are for illustration purpose and may not show the actual product.
Model:
HNC3130R-IR-Z
Item #: 1894
Manufacturer: SavvyTech
MSRP:
$300.00
Our Price:
$222.00
(You save: $78.00)
- 1/3” 3Megapixel progressive Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 20fps@3M(2048×1536)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.7~12mm varifocal lens
- Max IR LEDs Length 30m
- IP66, PoE
|
HNC3130R-IR-Z
|
|
Camera
|
|
Image Sensor
|
1/3” 3Megapixel progressive scan Aptina CMOS
|
|
Effective Pixels
|
2048(H)x1536(V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/3(4)~1/10000s
|
|
Min. Illumination
|
0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
|
|
S/N Ratio
|
More than 50dB
|
|
Video Output
|
N/A
|
|
Camera Features
|
|
Max. IR LEDs Length
|
30m
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
Backlight Compensation
|
BLC / HLC / DWDR
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D
|
|
Privacy Masking
|
Up to 4 areas
|
|
Lens
|
|
Focal Length
|
2.7mm~12mm
|
|
Max Aperture
|
F1.4
|
|
Focus Control
|
Auto
|
|
Angle of View
|
H: 92°~ 28°
|
|
Lens Type
|
Motorized/ Fixed Iris
|
|
Mount Type
|
Board-in Type
|
|
Video
|
|
Compression
|
H.264/ H.264H/ MJPEG
|
|
Resolution
|
3M(2048×1536)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×7
20)/D1(704×576/704×480)/CIF(352×288/352×240)
|
|
Frame Rate
|
Main Stream
|
3M(1 ~ 20fps)/1080P (1 ~ 25/30fps)
|
|
Sub Stream
|
D1/CIF(1 ~ 25/30fps)
|
|
Bit Rate
|
H.264H: 40 ~ 8192Kbps; MJPEG: 40 ~ 16384Kbps
|
|
Audio
|
|
Compression
|
N/A
|
|
Interface
|
N/A
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wi-Fi
|
N/A
|
|
Protocol
|
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
|
|
Compatibility
|
ONVIF, CGI, PSIA
|
|
Max. User Access
|
20 users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone
|
|
|
Auxiliary Interface
|
|
Memory Slot
|
N/A
|
|
RS485
|
N/A
|
|
Alarm
|
N/A
|
|
PIR Sensor Range
|
N/A
|
|
General
|
|
Power Supply
|
DC12V/PoE (802.3af)
|
|
Power Consumption
|
Max 8.5W
|
|
Working Environment
|
-30°C~+60°C, Less than 95% RH
|
|
Ingress Protection
|
IP66
|
|
Vandal Resistance
|
N/A
|
|
Dimensions
|
72mm×80mm×212.8mm
|
|
Weight
|
0.65kg
|
