Model

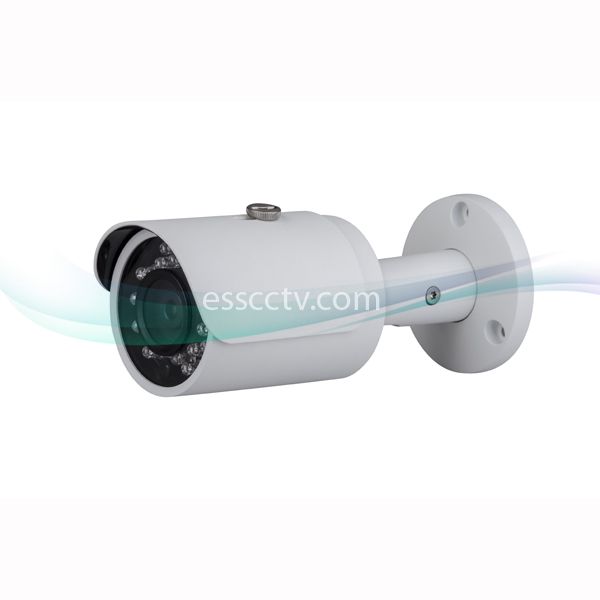

HNC5141S-IR

Camera

Image Sensor

1/3”4Megapixel progressive scanCMOS

Effective Pixels

2688(H)x1520(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/10000s

Min. Illumination

0. 01Lux/F2.0(Color),0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

30m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / WDR(120 dB)

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm

Max Aperture

F2.0(F2.0)

Focus Control

Manual

Angle of View

H:84°(56°)

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/H.264B/H.264H/MJPEG

Resolution

4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×

720)/D1(704×576/704×480) /CIF(352×288/352×240)

Frame Rate

Main Stream

4M(1~20fps)/3M(1~25/30fps)(WDR OFF)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Third Stream

720P(1-5/8fps)(WDR on)

720P(1-18/2fps)(WDR off)

Bit Rate

H.264: 32K ~ 10Mbps

Corridor Mode

Support

Audio

Compression

N/A

Interface

N/A

Smart Function

Smart detection

Tripwire

Intrusion

Scene change

Face detect

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF ,PSIA,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

< 5W

Working Environment

-40°C~+60°C, Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Dimensions

70mm×165mm

Weight

0.42kg
