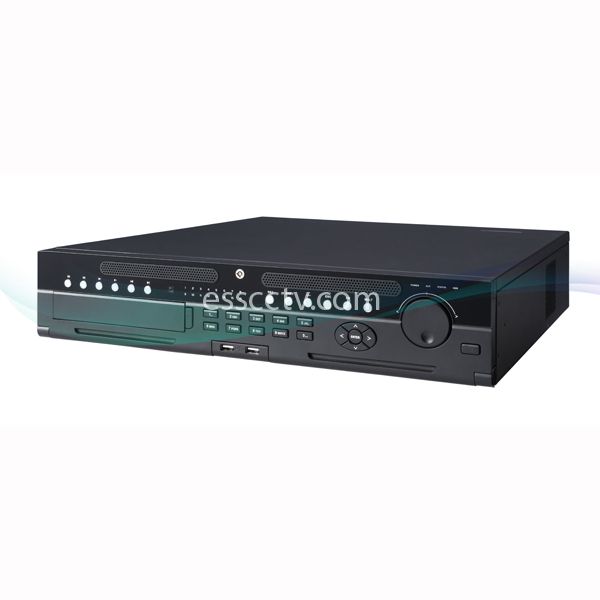

| Model | NVR708S-64-4K | |
| System | ||
| Main Processor | Intel Processors | |
| Operating System | LINUX | |
| Video& Audio | ||
| IP Camera Input | 64 channel | |
| Two-way Talk | 1channel Input, 1channel Output, RCA | |
| Display | ||
| Interface | 2 HDMI (up to 3840×2160), 1 VGA | |
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Multi-screen Display | The 1st screen: 1/4/8/9/16/25/36 | |
| The 2nd screen: 1/4/8/9/16 | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.264/MJPEG | |
| Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. | |
| Record Rate | 256Mbps | |
| Bit Rate | 1~ 20Mbps | |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop |
|
| Record Inter val | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection & Alarm | ||
| Trigger Events |
Recording, PTZ, Tour, Alarm out, Video Push, Email, FT P, Snapshot, Buzzer & Screen tips |
|
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Input | 16ch, low level effective, green terminal interface | |
| Relay Output | 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface | |
| Playback & Backup | ||
| Playback |
128Mbps in Raid 5 mode 64Mbps in single HDD mode |
|
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) | |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow pla y, Next file, Previo us file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
| Backup Mode | USB Device/Network/Internal SATA burner /eSATA Device | |
| Network | ||
| Interface | 2 RJ-45 ports (10/100/1000Mbps) | |
| Ethernet Port | 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports | |
|
Network Function |
HTTP, TCP/ IP, IPv4/ IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Ser ver, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 8 SATA III ports, up to 48TB | |
| HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare) | |
| Auxiliary Interface | ||
| USB | 4 USB ports(3 USB2.0, 1 USB3.0) | |
| eSATA | 1 eSATA port | |
| RS232 | 1 port, For PC communication& keyboard | |
| RS485 | 1 port, For PTZ control | |
| General | ||
| Power Supply | AC110V~240V, 50~60Hz | |
| Power Consumption |
<40W (Without HDD) |
|
|
Working Environment |
-10°C~+55°C/10%~90%RH/86~106kpa |
|
| Dimension(W×D×H) | 486mm(with ears)×454.9mm ×91mm | |
| Weight | 9kg (without HDD) | |
| Installation | 19” Rack-mounted | |
