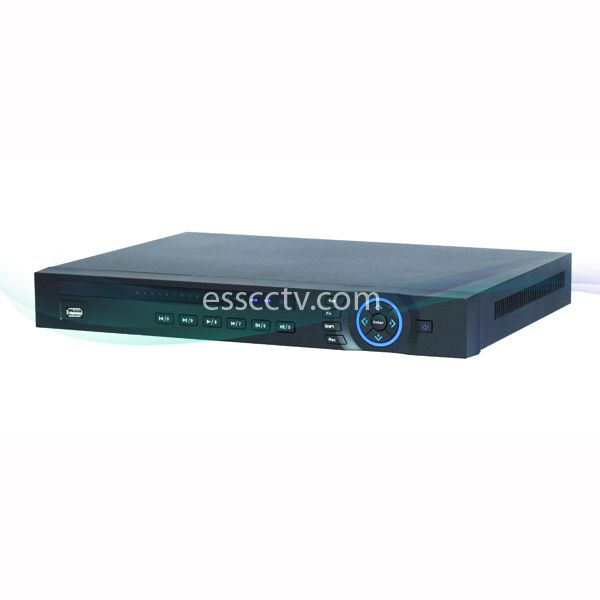

| NVR302A-08 |
NVR302A-16 |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video |
| IP Camera Input |
8 channel |
16 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split |
1/4/8/9 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp（2560×1920）/3Mp（2048×1536）/1080P(1920×1080) / 720P(1280×720)
/ D1 (704×576/704×480)&etc.
|
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Alarm Input |
4 channel |
| Relay Output |
2 channel |
| Playback & Backup |
| Sync Playback |
1/4/9 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback
Function
|
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. UserAccess |
128 users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
2 SATA ports, up to 8TB |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0,1 Front USB2.0) |
| |
|
|
|
