> Item #1852

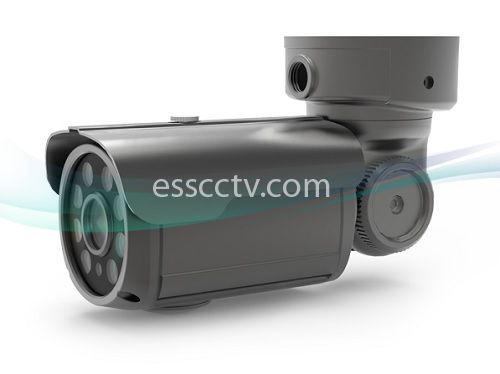

NIR-MP5342V-B3610 5MP Outdoor IR Bullet IP Camera with 3.6~10mm VF Motorized Lens & 8 COB IR

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: NIR-MP5342V-B3610
Item #: 1852

MSRP: ~~$600.00~~
Our Price:

$448.00

(You save: $152.00)

```
1/3" CMOS image sensor
```

```
High Definition IP Camera Module
```

```
IR LED 08 pcs
```

Upgraded Waterproof Housing (IP 68 rating)

```
DNR (Digital Noise Reduction)
```

```
WDR (Wide Dynamic Range)
```

```
Day/Night switch
```

```
Easy Installation
```

```
ICR V/F lens
```

```
DC Auto IRIS V/F Lens
```

```
DC Auto IRIS & TDN V/F Lens
```

```
(Focal Length : 3.6~10mm)
```

LENS (Optional)		Focal Length : 3.6 ~ 10.0 mm / F No. : 1.5±5% / Format : 1/1.8” inch Field of View : H109° ~ H42°
IMAGE	Image Sensor	Sony 1/1.8” 6.44Megapixel RGB Bayer Array CMOS Sensor
	Number of Effective Pixels	3096(H) x 2080(V) approx. 6.44M pixels
	Min. Illumination	(Color Mode : 0.15 lx at 50IRE/30fps) (B/W Mode: 0.09 lx at 50IRE/30fps)
	Scanning Mode	Progressive Scan
	S/N Ratio	51dB
CAMERA	Function	Wide Dynamic Range (Digital WDR (ATR-EX)) / Day and Night Mode (Automatic, Day, Night) Noise Reduction (2D-NR, 3D-NR) / BLC / HLC / LDC / Tamper / Defog / Image Effect (Mirror, Flip) Privacy Mask (Max.8 Area Selection) / Video Motion Detection (Max.4 Area Selection)
	Auto Exposure Mode	Automatic (Priority: Frame rate/Low noise), Manua
	Shutter Speed Control	Automatic (Min. 1/135,000 sec ~ Max. 1/60 sec) / Manual (Min. 1/10,000 sec ~ Max. 1/10 sec
	Gain Control	Automatic: Min. 1.2dB ~ Max. 54dB / Manual: Min. 1.2dB ~ Max. 54dB, Default 1.2dB
	Auto White Balance Mode	ATW-Indoor/Outdoor, Shade, Clear sky, Fluorescent light, Light bulb, Flame, Manua
	Auto Focus (Optional)	One Push, Manual, (Automatic)
	Zoom	Optical Zoom (Optional) : Motorized 2.8x / Optical Zoom Speed (Optional) : 1~6 Steps / Digital Zoom : 16x
	Corridor Format	90°/270°
NETWORK	Video	Video Compression (H.264(High, Main, Base line profile), MJPEG) / Video Frame Rate ( 15fps@2592x1944p)
	Video Resolution	2592x1944, 2048x1536(QXGA), 1920x1080(Full-HD), 1280x1024(SXGA), 1280x720(HD), 704x480(4CIF/NT), 704x576(4CIF/PAL), 640x480(VGA), 352x288(CIF), 320x240(QVGA)
	Video Streaming	Simultaneously H.264 and MJPEG (Triple Streaming) / Independent Frame Rate and Bandwidth Control, VBR/CBR Mode
	Audio Streaming	Two way(G.711)
	FTP Uploading	MJPEG Still Image
	Event	Event In (Onboot/Trigger/Network Loss/Tampering /Motion) / Event Out Notification (E-mail, FTP)
	Login Authority	Administrator, Operator, Guest
	Event Buffering	FTP : Pre/Post Event Time: 0~30sec, FPS: 1~2 fps
	Manual Trigger	Still Image Capture
	Security	Multi User Authority, IP Filtering, HTTPS
	Network Time Sync	Synchronize Computer/NTP Server, Manual
	Software Reset	Restart, Reset, Factory Default
	Auto Recovery	Backup, Restore
	Remote Upgrade	Using Web Browser
	Protocol	TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UpnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf
	Client Software	Built-In Web, ONVIF Compatible 3rd Party VMS
	Max. User Connection	10 Users
	SDK Support	API, ONVIF Profile S Compliant
EXTERNAL IN/OUT	Ethernet Tx/Rx	RJ-45(10/100Base-T)
	Control	IR_LED (IR_LED Control On/Off) / Day & Night (IR_Cut_Filter Exchange) / Iris (DC-Iris, Fixed) Alarm (Alarm-In 1/Alarm-Out 1) / Zoom (Max. 4.2x) / Focus (One-Push, Manual, (Automatic)) /Audio (Line-In/Line-Out)
	SD Card (Option)	SDHC/SDXC
OPERATION ENVIRONMENTS		Operating Humidity (0~90% (non-condensing)) / Operating Temperature (-10â„ƒ~ + 50â„ƒ) Power Supply ( DC12V / PoE) / Power Consumption (4W(without IR_LED))
