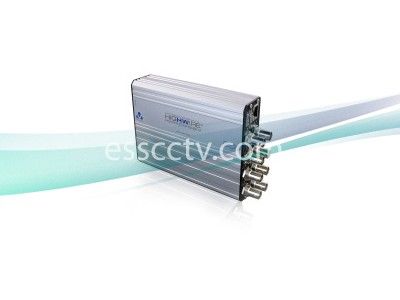

Veracity VHW-HWPS-B8 HW Powerstar BASE8
Images are for illustration purpose and may not show the actual product.
Model:
VHW-HWPS-B8
Item #: 1822
Manufacturer: Veracity
MSRP:
$1,600.00
Our Price:
$1,138.00
(You save: $462.00)
- 8 channels per Base unit, up to 32 channels in 1U
- Gigabit uplink port with fibre option via SFP socket
- Only 1 main switch port required per 8 channels
- POE or POE Plus per channel, on all channels
- Automatic configuration for simple installation
- Up to 300m on RG59, 400m on RG6, 500m on RG11
- Full duplex 100Base-TX performance on each coax link
| POWER |
|
|
| Unit power |
|
10W rising to 20W under full POE load |
| POE Out |
|
IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) up to 25W per channel |
| Power input |
|
57V DC, up to 6A via a 2 pin detachable screw terminal (supplied) |
| |
|
or a 2 pin Micro-Fit power connector |
| HIGHWIRE INTERFACE |
|
| Connector type |
|
BNC 75 Ohm x 8 |
| Cable type |
|
Any 75 Ohm coaxial (other impedances supported) |
| Range |
|
Up to 300m [1000ft] on RG59 or 500 metres [1640 feet] on RG11 at full rate |
| Bandwidth |
|
200 Mbps (total up + down) x 8 |
| |
|
|
| ETHERNET INTERFACE |
|
| Connector type |
|
RJ45 with optional SFP socket for fibre |
| Cable type |
|
Cat 5/6 Patch or crossover, auto-detected or as per optional SFP device |
| Rate |
|
Gigabit Ethernet, Full duplex (1000Base-TX) with auto-negotiation |
| |
|
|
| LEDS |
|
|
| Status indicators |
|
HIGHWIRE coax link |
| |
|
Ethernet link/activity (BASE) |
| |
|
POE-over-coax |
| |
|
See Quickstart Guide for LED indicator table and diagnostics |
| PHYSICAL/ENVIRONMENTAL |
| Dimensions |
|
L 173mm (including BNC connectors) W 110mm H40mm |
| Weight |
|
572g [20.2oz] |
| Operating temperature |
0ºC to 40ºC [32ºF to 104ºF] |
| Relative humidity |
|
85% non-condensing |
| Compliance |
|
FCC, CE, RoHS, REACH |
