> Item #1806

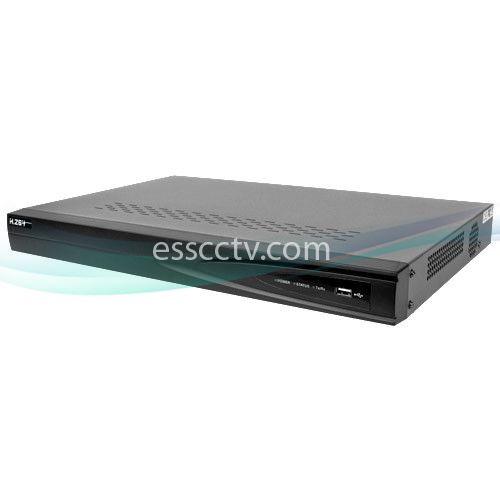

NVR-608-P8 8CH 1080P HDMI/VGA NVR with 8 Built-in PoE

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: NVR-608-P8
Item #: 1806

MSRP: ~~$400.00~~
Our Price:

$224.00

(You save: $176.00)

The NVR608-P8 is an 8-channel IP NVR with 8 PoE Ports. This unit supports real-time playback and 1080p HDMI output. The video feed may also be viewed remotely on any internet browser and smartphone. The NVR608-P8 also comes with easy to use video management software for the PC and a 2 year warranty.

• 8 Channels + 8 PoE Ports
• 5MP Max Recording Resolution
• H.264 / MPEG4 Compression
• 1080p HDMI / VGA Out

System
Compression Format	H.264
OS	Embedded Linux
Video/Audio Output
IP Video Input	8-ch, Max 40Mbps Input
VGA Output	1-ch, resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
CVBS Output	None
HDMI Output	1-ch, resolution: 1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz
Recording Resolution	5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF
Simultaneous Playback	8-ch, 4CIF (Real-time) 8-ch, 4-ch 720P, 2-ch 1080P, 5 MP (No Realtime)
Playback Resolution	5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF
Dual Stream	Main and Sub-Streams
	1-ch RCA
Audio Output	1-ch RCA
Backup Format	MP4
Storage
SATA	2 SATA Interfaces for 2HDDs
e-SATA	No
Capacity	Up to 4TB capacity for each disk
External Interface
Network Interface	1 RJ45 10M/100M/1000M adaptive Ethernet 4 independent 10/100 Mbps PoE Ethernet
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1 RS-485 Interface
Alarm Input:	No
Alarm Output:	No
Built-in PoE
No. of Ports	8
Standard	802.3af standard
Power Consumption	120W total
General
Mobile App	NVMS7000 for iPhone/iPad/Android
Power Supply	100 ~240VAC, 47 ~63Hz, 3A
Consumption	≤ 15 W (without hard disk)
Working Temperature	-10 °C ~ 55 °C
Humidity	10%~90%
Chassis	19-ich rack-mounted 1U chassis
Dimensions	445 × 290 ×45 mm (W x D x H)
Weight	≤ 2 Kg ( without hard disk)
