> Item #1770

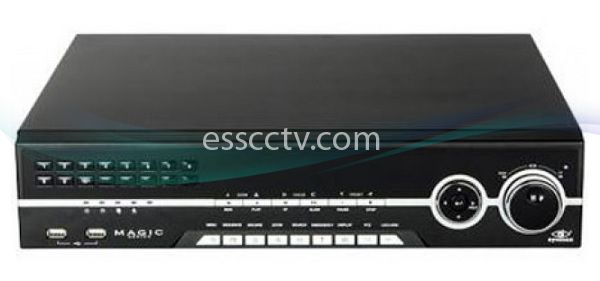

* SOLD OUT * EYEMAX TVST-MAGIC-TP32M MAGIC Plus Series - 32CH Real-time 1080p DVR System - Supports HD-TVI / 960H / Analog / IP

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: TVST-MAGIC-TP32M
Item #: 1770
Manufacturer: Eyemax

MSRP: ~~$1,700.00~~
Our Price:

$1,175.00

(You save: $525.00)

Magic Plus Feature : able to assign IP Camera on a selected channel (Max 4 CH)

Full GUI with Alpha Blending

Individual Setting of Resolution, Frame Rates & Picture Quality

Instant Replay

Digital Zoom (Live & Playback)

Mouse Control

Weekly Scheduler with Holiday by 10 min Setting

Covert, Disable & Private Function of Cameras

Motion Detection with 576 Area Settings

Relay Alarm Output

PTZ Control by RS-485

Daylight Saving Time and Network Time Setting

Multi-User Authority up to 8 Users

De-interlacer upon Live &Playback

22 Languages with Full Graphic

Individual Network Port Setting

Auto Deletion

Import and Export the Configuration

POS Interface

Dual CODEC Engine for Independent Video Transmission

Interactive Setup via Network

Video
Camera input	32 BNC
Individual HD/Analog selectable	All Hybrid
Available source	TVI 720p25,30 / 1080p25,30 / Composite / 960H / Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethernet switch
Max. # of IPC Support	4
IP Camera Restrictions	Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp
Output	1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio & Sensor
Audio input	16 RCA
Output	1 RCA
Sensor In	16 (NC, NO selectable)
Alarm out	2 Relay, 14 TTL
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280X1024, 1280X720, 1920X1080
Split screen	1,4,6,8,9,13,16
Main Recording
CODEC	H.264
Resolution (Pixel)	1080p, 720p, 960x540 (1080p25,30) 720p, 960x540 (720p25,30) 960H, D1, 480x240, CIF (Composite, 960H)
Picture quality	4 steps (Super, High, Medium, Low)
Speed	480fps@720p/480fps@1080p (NTSC) 400fps@720p/400fps@1080p (PAL)
Dual Recording
CODEC	H.264
Condition	Main Recording is 1080p, 720p
Resolution (Pixel)	480x256
Playback
Display	1,4,6,8,9,13,16,25,32
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	480fps@1080p (NTSC) 400fps@1080p (PAL)
Fast/Slow speed	Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network
Network Interface	Gigabit Ethernet x 2
High Resolution (Pixel)	1080p, 720p(1080p25,30) 720p, 960x540 (720p25,30) 960H, D1 (Composite, 960H)
Low Resolution (Pixel)	480x256 (1080p25,30) 480x256 (720p25,30) CIF (Composite, 960H)
Speed	180fps@1080p (NTSC) 140fps@1080p (PAL)
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 or later (PC Client system& IE) / MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 × 3
Backup device	External HDD, CD&DVD-RW, Network, USB Thumb Drive
The # of HDD	4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 4TB or more)
Etc.
Power Consumption	150W
Operating Temperature	5~40°C(41~104°F)
Relative Humidity	Maximum 80% non-condensing
Dimensions	430(W)×420(D)×88(H)mm
