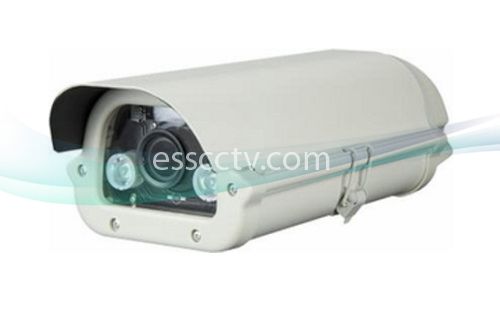

TLP-1322V-W HD-TVI 1080p(2MP) License Plate Capture Camera in Weather-proof Housing with white LED Light
Images are for illustration purpose and may not show the actual product.
Model:
TLP-1322V-W
Item #: 1757
MSRP:
$240.00
Our Price:
$167.00
(You save: $73.00)
- Excellent Performance for vehicle License Plate Recognization
- True WDR Function
- HD-TVI - High Definition Transport Video Interface 1080p FULL HD flawless video
- 1/2.8” CMOS Sensor
- 2 Mega Pixels
- 6~22mm Vari-Focal Lens
- White Light LED range up to 20m (65.6ft approx.)
- High-quality IR Cut Filter
- Weather-Resistant Housing IP 66
- Support UTC function, 960H CVBS output
- DC 12V
| Image Sensor |
1/2.8” Mega Pixel Sensor |
| Effective Pixels |
2.0 Mega Pixels |
| Horizontal Resolution |
NTSC : 1920×1080 30fps |
| Built-in Lens |
6-22mm Mega Pixel Lens |
| Signal System |
NTSC |
| Sync. System |
Internal Sync. |
| Sensing Area |
5.42mm X 3.41mm |
| WDR Function |
Yes (120dB) |
| Video Output |
1.0Vp~p75Ω |
| S/N Ratio |
More than 50dB (AGC OFF) |
| White Balance |
Auto Tracking White Balance |
| Shutter Speed |
1/50(1/60)-1/100,000 Sec |
| Illumination for LED Light trigger |
1 Lux |
| Infrared Wavelength |
Visiable Light Range |
| Minimum Illumination |
0 Lux ( w/ LED Light Lamps ON) |
| White Light LED |
2 Pcs (High-power) |
| Weather Resistant |
IP66 |
| Working Temperature |
-10°C~50°C |
| Storage Temperature |
-20°C~60°C |
| Power Requirement |
DC 12V Max Power Consumption Less Than 5W |
