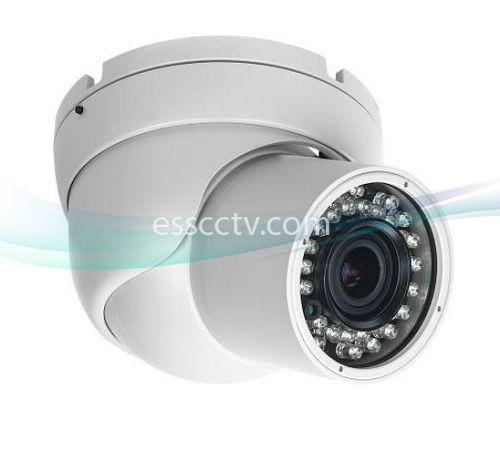

EYEMAX TIB-2032V HD-TVI 1080p HD Eyeball Camera w/ 35 IR LED & 2.8~12mm VF Lens
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
TIB-2032V
Item #: 1745
Manufacturer: Eyemax
MSRP:
$180.00
Our Price:
$139.00
(You save: $41.00)
- HD-TVI - High Definition Transport Video Interface 1080p FULL HD Flawless Video
- 1/2.9” Sony CMOS
- 2.8~12mm Auto-Iris Vari-Focal Lens
- 0 Lux at IR On (35 pcs)
- Weatherproof Housing
- Smart IR / DNR (Digital Noise Reduction / True Day & Night (ICR)
- RS-485 Option
- Easy Installation
- DC 12V
| Resolution |
1080p, 720p, 720p CROP |
| Sensor |
1/2.9 inch Sony CMOS |
| Total Pixels |
2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels |
1944(H) × 1092(V) = 2,122,648 |
| Scanning System |
Progressive |
| S/N (Y Signal) |
More then 52 dB (AGC Off) |
| Video Output |
TVI / (CVBS: 1.0Vp-p (75ohm):Option) |
| Min. Illumination |
0 Lux at IR On |
| White Balance |
Auto / Auto Ext / Preset / Manual |
| Shutter |
Auto / Manual (1/30sec ~ 1/60,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens Up |
OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR |
OFF / Low / Middle / High |
| Backlight |
OFF / WDR / BLC / HLM |
| ACE |
OFF / Low / Middle / High |
| Day & Night |
Auto (Day <--> Nigh time Change), Color, B/W, Extern, MDIR (Search Option) |
| Privacy |
OFF / ON (16 Zone) |
| Motion |
OFF / SET |
| Digital Zoom |
0~127 |
| Flip |
OFF / ON |
| Freeze |
OFF / ON |
| Language |
English, Chinese, Chinese(S), Japanese, Korean |
| Sharpness |
Adjustable (0~10 Step) |
| Defog |
OFF / SET |
| Communication Port |
RS-485 (Pelco-D) |
| Smart IR |
Adjustable (0~20 Step) |
| Operating Temp / Humidity |
-10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
| Storage Temp / Humidity |
-20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
| Power |
DC 12V |
| Signal Transmission |
The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M) |
