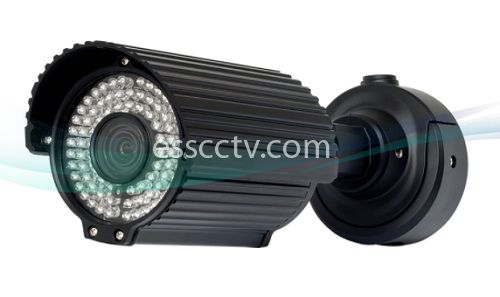

* SOLD OUT * EYEMAX XIR-2184FV HD-SDI : 1080p IR Bullet Camera with Auto-Iris VF Lens & Dual Power
Images are for illustration purpose and may not show the actual product.
Model:
XIR-2184FV
Item #: 1651
Manufacturer: Eyemax
MSRP:
$290.00
Our Price:
$194.60
(You save: $95.40)
- 1/3 inch SONY 2 Mega-pixel CMOS
- Auto IRIS V/F Lens 2.8~12mm
- 1080p / 720p Resolution
- Min Illumination : 0 Lux at IR On (IR LED 80pcs)
- Horizontal Resolution 1000TVL
- DC 12V / AC 24V : DUAL POWER
| Resolution |
HD-SDI(1080P, 720P) / 1000 TV Line Over |
| Sensor |
1/3“ SONY CMOS |
| Total Pixels |
2010(H) × 1108(V) = 2,227,080 |
| Effective Pixels |
1944(H) × 1092(V) = 2,122,648 |
| Scanning System |
Progressive Scan |
| S/N (Y Signal) |
More than 52 dB(AGC Off) |
| Video Output |
SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm) |
| Min. Illumination |
0 Lux at IR On (IR LED 80pcs) |
| White Balance |
AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic Shutter Speed |
AUTO / MANUAL(1/30sec ~ 1/30,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens-up |
OFF / ×2 / ×3 / ×4 |
| DNR |
OFF / LOW / MIDDLE / HI |
| WDR / BLC |
OFF / WDR / BLC |
| HLM |
OFF / SET |
| ACE |
OFF / ON |
| Day & Night |
AUTO (Day <-> Night TIME Change), COLOR, B/W |
| Privacy |
OFF / ON (28 Zone) |
| Motion Detection |
OFF / ON |
| D. Zoom |
0 ~ ×112 |
| FLIP |
OFF / ON |
| FREEZE |
OFF / ON |
| Language |
ENGLISH |
| Sharpness |
ADJUSTABLE (0~10 STEP) |
| Mirror |
ON / OFF |
| COMM. |
RS-485(PELCO-D) |
| Operating Temperature / Humidity |
-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temperature / Humidity |
-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH |
| Power |
DC 12V / AC 24V |
| HD-SDI |
100~150m |
| Transmission range |
Max transmission range is depends on the cable manufacturer and the installtion environment. |
