* SOLD OUT * EYEMAX XIR-2282FV HD-SDI 1080p IR Bullet Camera with Auto-Iris VF Lens

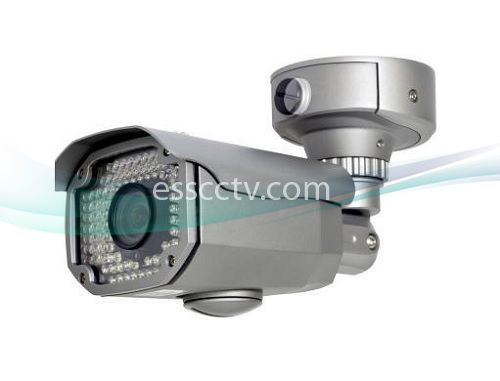

Images are for illustration purpose and may not show the actual product.
Model:
XIR-2282FV
Item #: 1649
Manufacturer: Eyemax
MSRP:
$270.00
Our Price:
$172.00
(You save: $98.00)
- 1/3" Sony CMOS
- HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 80pcs)
- Upgraded waterproof housing (IP67 rating) / OSD Controlled
- True Day & Night(ICR) / DNR (Digital Noise Reduction)
- Motion / Privacy / Easy Installation
- 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)
Resolution |
HD-SDI(1080p, 720p) / 1000 TV line over |
Sensor |
1/3" Sony CMOS |
Total Pixels |
2010(H) × 1108(V) = 2.2M Pixel |
Effective Pixels |
1944(H) × 1092(V) = 2.1M Pixel |
Scanning System |
Progressive |
S/N (Y signal) |
More than 52 dB (AGC Off) |
Video Output |
SMPTE292M (HD-SDI) |
Min.Illumination |
0 lux at IR On |
White Balance |
Auto / Auto EXT / Pushing / Manual |
Electronic Shutter Speed |
Auto / Manual (1/30sec ~ 1/30,000sec) |
Brightness |
Adjustable (0 ~ 20 Step) |
SENS_UP |
Off / ×2 / ×3 / ×4 |
DNR |
Off / Low / Middle / Hi |
WDR / BLC |
Off / Single scan WDR / BLC |
HLM |
Off / Set |
ACE |
Off / On |
Day & Night |
Auto (Day <--> Night time change) , Color , B/W |
Privacy |
Off / On (28 Zone) |
Motion Detection |
Off / On |
D.ZOOM |
0 ~ ×112 |
FLIP |
Off / On |
FREEZE |
Off / On |
Language |
English |
Sharpness |
Adjustable (0 ~ 10 Step) |
Mirror |
On / Off |
COMM. |
RS-485(PELCO-D) |
Operating Temperature / Humidity |
14°F~122°F (-10°C~+50°C) / 30%~80% RH |
Storage Temperature / Humidity |
-4°F~+140°F (-20°C~+60°C) / 20%~90% RH |
Power |
DC 12V Only |
Distance |
300 ~ 450ft (100 ~ 150m) |
Transmission range |
Max transmission range is depends on the cable manufacturer and the installation environment. |
