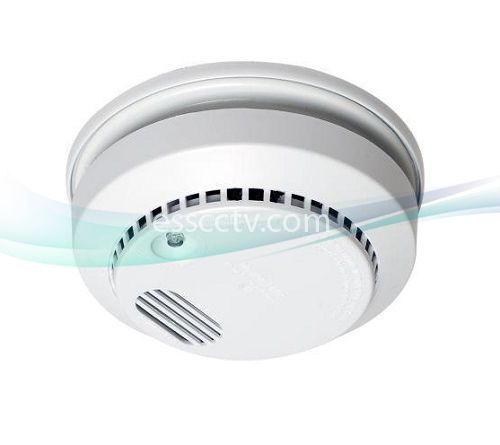

EYEMAX UHI-SMK-21P EX-SDI / HD-SDI 1080P Smoke Detector Case Camera with 4.3mm Pin-hole Lens
Images are for illustration purpose and may not show the actual product.
Model:
UHI-SMK-21P
Item #: 1614
Manufacturer: Eyemax
MSRP:
$88.20
Our Price:
$68.60
(You save: $19.60)
- 4.3mm Fixed Pin-hole Lens
- EX-SDI / HD-SDI : 1080P FULL HD Flawless Video
- 1/2.9” SONY CMOS (IMX-222/IMX322)
- Indoor Only
- EX-SDI / HD-SDI Selectable
- DC 12V
| Resolution |
1080P |
| Sensor |
1/2.9 inch SONY CMOS (IMX-222 / IMX322) |
| Total Pixels |
2000(H)×1241(V)=2,482,000 |
| Effective Pixels |
1944(H)×1092(V)=2,122,648 |
| Scanning System |
Progressive |
| S/N (Y signal) |
More than 52dB (AGC OFF) |
| Video Output |
SMPTE292M (HD-SDI) / CVBS: 1.0Vp-p(75Ohm) |
| Min. Illumination |
1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance |
AUTO |
| SHUTTER |
AUTO (1/30sec~1/60,000sec) |
| AGC |
ON |
| DNR |
ON |
| Day & Night |
ON |
| Operating Tem. / Humidity |
−10°C to +50°C (14°F to 122°F) / 30%~80% RH |
| Storage Tem. / Humidity |
−20°C to +60°C (−4°F to 140°F) / 20%~90% RH |
| Power |
DC 12V |
| Signal Transmission |
The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
