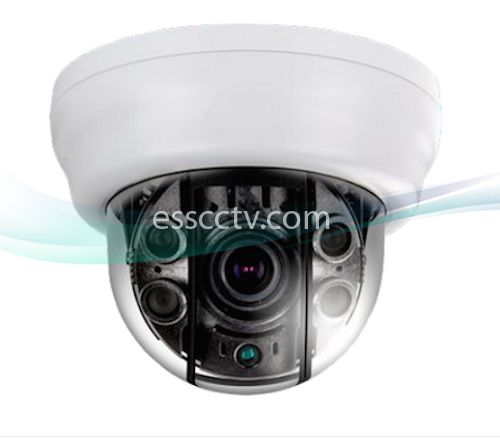

EYEMAX UDR-2542V EX-SDI 1080p(2MP) Anti-IR Reflection Large Size Indoor Dome w/ 4 COB IR
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
UDR-2542V
Item #: 1602
Manufacturer: Eyemax
MSRP:
$160.20
Our Price:
$124.60
(You save: $35.60)
- 1080p FULL HD Flawless Video
- Anti-IR Reflection Series : (The Shield) : prevents washed out video caused by IR reflection from obstacles(water or oil) on cover (U.S. Patent Pending)
- 4 High Powered IR LED : Up to 50% more brighter than conventional IR LED
- SUPERDOME® (US Patent : 8337100) series camera with easy flip cover open
- Dual Video Output : EX-SDI/HD-SDI & CVBS - Analog
- 1/2.9 inch Sony CMOS : Low Power Consumption
- Minimum Illumination - 0 Lux with IR on
- 2.8~12mm Auto-Iris IR Corrected Lens Installed - provides the best focused image both color & IR mode
- Auto Removable IR-Cut Filter (ICR) : True Day & Night. Deep color and clear video at both day and night time
- OSD (On Screen Display) - Easy camera setup
- DNR (Digital Noise Reduction) • D-WDR (Digital Wide Dynamic Range) • HLM (High Light Masking) and more advanced image enhancing features
- DC 12V only
| Resolution |
1080p, 720p |
| Sensor |
1/2.9 inch SONY CMOS (IMX-222 / IMX322) |
| Total Pixels |
2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels |
1944(H) × 1092(V) = 2,122,648 |
| Scanning System |
Progressive |
| S/N (Y Signal) |
More then 52 dB (AGC Off) |
| Video Output |
SMPTE274M (HD-SDI) / CVBS: 1.0Vp-p (75ohm) |
| Min. Illumination |
0 Lux at IR On |
| White Balance |
Auto / Auto Ext / Preset / Manual |
| Shutter |
Auto / Manual (1/30sec ~ 1/60,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens Up |
OFF / ×2 / ×4 / ×8 / ×16 / ×32 |
| DNR |
OFF / Low / Middle / High |
| Backlight |
OFF / WDR / BLC / HLM |
| ACE |
OFF / Low / Middle / High |
| Day & Night |
Auto (Day <--> Night Time Change), Color, B/W, Extern |
| Privacy |
OFF / ON |
| Motion |
OFF / ON |
| D.ZOOM |
×1.0 ~ ×16.0 |
| Flip |
OFF / ON |
| FREEZE |
OFF / ON |
| Language |
English, Chinese, Chinese(S), Japanese, Korean |
| Sharpness |
Adjustable (0~10 Step) |
| Defog |
OFF / SET |
| Communication Port |
RS-485 (Pelco-D) |
| Smart IR |
Adjustable (0~20 Step) |
| Operating Temp / Humidity |
-10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
| Storage Temp / Humidity |
-20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
| Power |
DC 12V |
| Signal Transmission |
The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
