> Item #1594

EYEMAX UVST-MAGIC-U04-4M - 4CH 1080p DVR System 4K ouput - Supports upto 4MP EX-SDI / HD-SDI / HD-TVI / A-HD / 960H

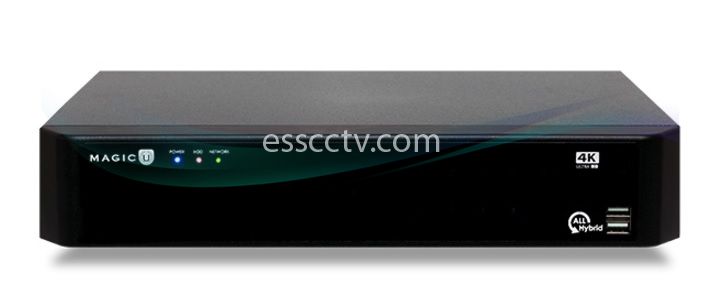

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: UVST MAGIC-U04-4M
Item #: 1594
Manufacturer: Eyemax

MSRP: ~~$650.00~~
Our Price:

$539.00

(You save: $111.00)

Allows to assign IP Camera on a selected channel (Max 1 CH)

Progammable Multi-CH HD spot out (VGA / HDMI) or analog composite spot out

Full GUI with Alpha Blending

Individual Setting of Resolution, Frame Rates & Picture Quality

Instant Replay

Digital Zoom (Live & Playback)

Mouse Control

Weekly Scheduler with Holiday by 10 min Setting

Covert, Disable & Private Function of Cameras

Motion Detection with 576 Area Settings

Relay Alarm Output

PTZ Control by RS-485

Daylight Saving Time and Network Time Setting

Multi-User Authority up to 8 Users

De-interlacer upon Live &Playback

22 Languages with Full Graphic

Individual Network Port Setting

Auto Deletion

Import and Export the Configuration

POS Interface

Dual CODEC Engine for Independent Video Transmission

Video
Camera input	4 BNC
Individual HD/Analog selectable	All Hybrid
Available source	HD-SDI 720p25,30/1080p25,30 EX-SDI 720p25,30/1080p25,30 /Composite/960H/Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub
IP Camera Num	1
IP Camera Restriction	Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp
Output	2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio
Audio input	4 RCA
Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280×1024, 1280×720, 1920×1080, UHD
Split screen	1,4
Main Recording
Resolution (Pixel)	1080p, 720p, 960×540 (1080p25,30) 720p, 960x540 (720p25,30) 960H, D1, 480x240, CIF (Composite, 960H)
Picture Quality	4 steps (Super, High, Medium, Low)
Speed	120fps@1080p
Dual Recording
Resolution (Pixel)	480×256
Playback
Display	1,4
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	60fps@1080p
Fast/Slow speed	Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel)	1080p, 720p(1080p25,30) 720p, 960x540 (720p25,30) 960H, D1 (Composite, 960H)
Low Resolution (Pixel)	480×256 (1080p25,30) 480×256 (720p25,30) CIF (Composite, 960H)
Speed	40fps@1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 × 2
Backup device	External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD	2 SATA(No capacity limit ; + 1 eSATA(upto 12bays, No capacity limit ; 6TB or more)
Others
Power Consumption	60W
Operating Temperature	5 ~40°C(41~104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	340(W)×250(D)×60(H) mm
