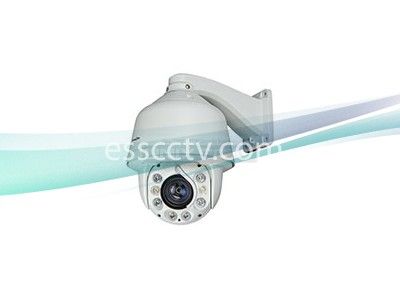

TRUON NIP-B20H20-W 1080p IP Outdoor IR PTZ Camera w/ x20 Optical Zoom (Wall)

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: NIP-B20H20-W
Item #: 1585

MSRP: ~~$980.00~~
Our Price:

$699.00

(You save: $281.00)

4.7mm ~ 94.0mm(20×)optical zoom

H.264 dual-stream video compression

Max 25/30fps@1080p resolution

WDR(DWDR), Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC

Support P2P penetration, Mobile phone push alarm function

Multiple network monitoring: Web viewer, CMS & Mobile

Max 240°/s pan speed, 360° endless pan rotation

Up to 255 presets, 8 auto scan, 8 tour, 4 pattern

IR LEDs up to 120m

With aluminum wiper, Avoid dust, ensure that the image is clear

IP 66, -35~55°C, DC12V

Camera
Image Sensor	1/2.9" 2.0 Megapixel Sony CMOS
Effective Pixels	1920(H)×1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/100~1/200,000s
Min. Illumination	0.5 Lux (F1.6, 50 IRE, ICR OFF), 0.095 Lux(F1.6, 50 IRE, ICR ON)
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	Auto
WDR	Support
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Privacy Masking	Up to 5 areas
Lens
Focal Length	4.7mm ~ 94.0mm(20× Optical zoom)
Max Aperture	F1.6 ~ F3.5
Focus Control	Auto / Manual
Iris control	Auto / Manual
Angle of View	H: 55.2°~3.2°
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -5° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.01° ~120° /s; Tilt: 0.01° ~100° /s
Preset Speed	Pan: 240° /s; Tilt: 200° /s
Protocol	PELCO_P, PELCO_D
Preset point	256PCS
Cruise scan	8 groups, 32pcs preset each group
Auto scan	8 groups, Left and right boundary can be set, the scanning speed can be set
Pattern scan	4PCS, Max 500pcs order or 30mins each group
Wiper function	Support
Video
Compression	H.264
Resolution	1080P(1920×1080) / 720P(1280×720) / SVGA(800×600)
Frame Rate	Main Stream : 1080P/ 720P / SVGA (1 ~ 25/30fps) Sub Stream : D1 / CIF / QCIF (1 ~ 25/30fps)
Bit Rate	16K ~ 8192Kbps
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIF	ONVIF Ver. 2.0
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android
General
Power Supply	DC12V, 3A
Power Consumption	<50W
Working Environment	-35°C~+55°C, 10%~85%
Dimensions	(W)210×(H)304mm / (W)8.2×11.9(H)inch
