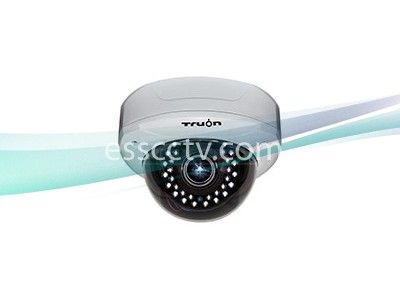

TRUON NIT-B2032FV-W 1080p IP IR Vandal Dome Camera w/ 30 IR LED
Images are for illustration purpose and may not show the actual product.
Model:
NIT-B2032FV-W
Item #: 1583
MSRP:
$200.00
Our Price:
$149.00
(You save: $51.00)
- 1/2.8" line scanning digital and advanced DSP technology
- Picture Resolution 1080P color CMOS, 2.0 Mega Pixel, 1920×1080
- Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
- The most advanced network delivery server technology, Easily achieve more user access, Multi-stage user password rights management
- Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation
- Support facilities remote security upgrade function
- Support DDNS, PPPoE and (UPnP), Support Lan, Wan transport.
- Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
- Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
- Support mobile detection / image shielding / image snapshot
- Functions of auto recovery in abnormality and auto reconnection in network breakdown
| NIT B2032FV |
| Camera |
Pixel |
1.3 Mega Pixel, 1280"960 |
| Sensor |
1/2.8" 2.0M SONY IMX222 CMOS |
| Lens |
2.8-12mm |
| Electronic shutter |
1/25s-1/30,000s |
| Low Lux |
Color : 0.2Lux@F1.6 B/W:0.01Lux@F1.6 |
| Auto iris |
N/A |
| ICR |
Support |
| Video parameter |
Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer |
| IR |
IR Properties |
Dual filter day / night: automatic switch, linkage switch |
| IR Light |
30pcs 5Ø IR LEDS |
| Audio-video coding parameters |
Compression |
H.264 Main Profile@Level 3.0 / MJPEG optional |
| Video bit rate |
16K-16Mbps, customized |
| Bit stream type |
Compound streams / video stream |
| Audio compress |
G.711 |
| Audio bit rate |
8~16kbps |
| Triple bit streams |
Support |
| Image |
Video resolution |
1920×1080P, 1280×720P |
| Video flame rate |
PAL: 1-25 frames/second, NTSC: 1-30 frames/second |
| Function |
PTZ |
N/A |
| Heartbeat mechanism |
Support |
| IP auto pop-out |
IP auto pop-out at customer end |
| Password protection |
Multi-level protection on password |
| Intellectual alarm |
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage |
| Basic functions |
One-key reset, password protection, watermark technology |
| Interface |
Audio input |
1CH |
| Video output |
1CH |
| Network port |
1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port |
| Alarm input |
1CH |
| Alarm output |
1CH |
| RS485 |
Support |
| SD Card |
TF Card(64G) |
| Preset |
Support |
| Wireless network |
WIFI |
N/A |
| Wireless encryption protocol |
N/A |
| Cell phone monitor |
Support |
| 3G network |
N/A |
| others |
POE |
Optional |
| Power supply |
DC12V/2.0A |
| Power consumption |
<8W |
| Working temp |
-10°C ~ +55°C / 14°F ~ 131°F |
| Working humidity |
10 ~ 85% |
| Dimension |
(¢)105mm×(H)80.8mm |
