> Item #1562

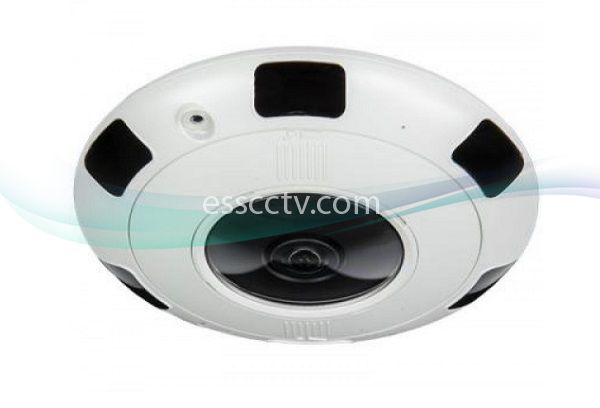

IP Power NIF-A602F-W 6MP IP Camera: Fisheye Network Camera w/ 6 Super Flux IR LEDs

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: NIF-A602F-W
Item #: 1562

MSRP: ~~$800.00~~
Our Price:

$559.00

(You save: $241.00)

Panoramic views from ceiling mount or wall mount with ePTZ

De-warp on camera, using a 6th Gen 12 Mega pixel lens for the highest crisp images

100dB WDR / Advanced Noise Reduction

6 pcs High Powered Super Flux IR LEDs

CAMERA
Light Sensitivity	0.01 Lux B/W (0 Lux IR LED On)
Day / Night	True Day / Night with ICR Filter ADC light level to allow user defined day/night switch
Fish-eye Lens	12 Mega pixel 6th Gen. f1.6mm F=2.0 360°
IR LED	6pc High Powered Super Flux LED 850nm
IR Distance	20 Meters (66 feet)
Video Output	Setup / Service BNC Video supported internal connector with dangle cable supplied
Electronic Shutter	Auto / User 1/5-1/10,000 ; 50/60Hz software selectable
Memory Card	Micro SDXC Max 2TB
Signal / Noise	60dB
Resolution	Max 3072 x 2048 @ 30fps
VIDEO
Compression	H-264 High/Main/Base Profile. Stream1 H-264, or MJPEG
Streaming	De-Warp Panorama stream of 2048x1024 pixels Fish-eye stream of 2048x2048
Quality Setting (VBR)	1 - 9 (9 Highest)
I Frame	User selection value
ePTZ	Set position of the de-warp stream origin. 0-360 for fisheye, and 0-180 for wall mount
Gain Control	Auto / Fixed 8~102db
Orientation	Horizontal Mirror / Vertical Flip
Text Overlay	Time / Date / Camera / Custom OSD
Masking	User defined masking areas, area follow ePTZ area
NETWORK
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
TCP/IP	IPv4 / IPv6 (DHCP / Fixed)
Compliance	Onvif v2.42 Profile-S Listed
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled)
Web Language	English, Chinese, Russian, Polish
Recording Simultaneous.	Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection
Network Protocols:	HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPPoE, NTP. Unicast and Multicast supported. Video streaming from SDK & NVMS / NVR software or 3rd party applications. User Ports setting for Web port, RTSP Port, and SDK Control Port and Alarm Port.
AUDIO
Input / Output	Optional Microphone: 1 x RCA Input / 1 x RCA Output@ 1V Line Level
Audio Compression	G711 A-Law, G711 U-Law, RAW_PCM
GENERAL
Power Input	12V DC Terminal / PoE 802.3af
Power Consumption	5W / Max 8W(LED On) PoE Class3
Temperature	-4°F to 131°F (-20°C to 55°C)
Operating Humidity	10% - 85% RH
Approvals	CE / FCC / RoHS Compliant / IP66 / IK10
Product Dimensions	162 x 50.8 mm (6.37” x 2”)
Product Weight	0.3kg / 0.66lb
Mounting	Wall & Ceiling Mountable
