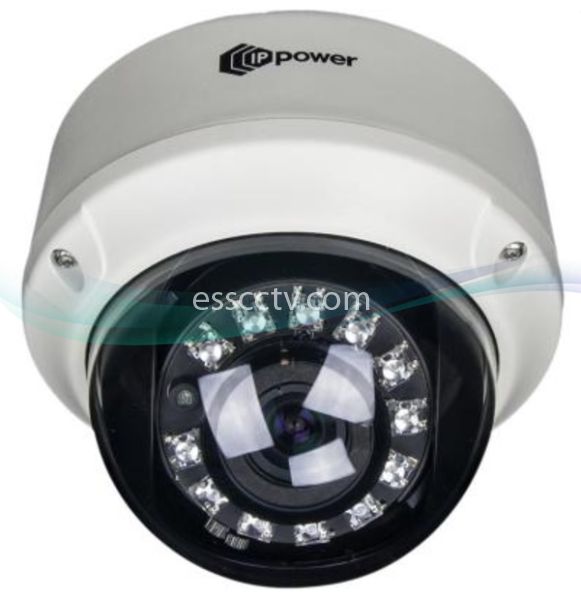

| CAMERA |
| Sensor |
Aptina 1/3" WDR CMOS |
| Max Resolution / FPS |
2048×1536 / 30fps |
| Min. illumination |
0.5Lux @ F1.2 (Color) (0 Lux IR LED On) |
| Day / Night |
True Day / Night with ICR Filter. |
| IR LEDs |
15pc Super Flux IR LED 850nm for 10-15 Meters (33 - 49 feet) |
| Lens |
3.3-12mm Vari-focal IR Corrected DC Auto IRIS |
| Video Output |
Internal Service RCA output for BNC Video with IP Address OSD |
| Electronic Shutter |
Auto / User 1/5 - 1/50,0000; 50/60Hz software selectable. |
| PARAMATERS |
| Compression |
H-264 High Profile (Support Baseline Profile) / MJPEG |
| Bit Rate (CBR/VBR) |
Stream1 50Kbps - 12Mbps ; Stream2 10Kbps - 6Mbps ; Stream3 (Fixed) |
| Quality Setting |
1 - 9 (9 Highest) |
| Multi- Streaming |
User setting of Stream 1/2 at supported Resolutions, Stream3 MJPEG Stream |
| Brightness / Sharpness |
Variable 0~100 / 0~100 |
| Gain Control |
Auto / Fixed 8~102db |
| Orientation |
Horizontal Mirror / Vertical Flip |
| Text Overlay |
Time / Date / Camera / Custom OSD |
| Masking |
5 User defined masking areas < 8% of total picture |
| NETWORK |
| Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
| TCP/IP |
IPv4 / IPv6 (DHCP / Fixed) |
| Compliance |
Onvif v2.2 Profile-S Listed |
| RTSP Video |
Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled) |
| Web Language |
English, Chinese, Russian, Polish, (European Languages coming 2013) |
| Recording Simultaneous. |
Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3) |
| Network Protocols: |
HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, NTP. Unicast and Multicast supported. |
| Memory Card Slot |
Internal memory card supports Max 64GB. Supports Edge Recording |
| AUDIO |
| Input / Output |
1 × RCA Input / 1 × RCA Output @ 1v Line Level |
| Audio Compression |
G711 A-Law, G711 U-Law, RAW_PCM |
| GENERAL |
| Power |
12V DC @ 520mA (IR LED On) / PoE Class 3 |
| Temperature |
Operating: 14°F to 131°F (-10°C to 55°C) Storage: -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity |
10% - 85% RH |
| Approvals |
CE / FCC / RoHS Compliant / IP66 / IK10 |
| Product Dimensions |
130 × 112 mm (5.1 × 4.4) |
