> Item #1536

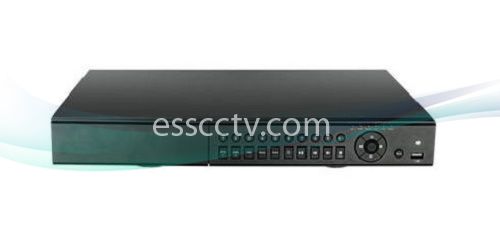

NVST-TX208-16 16 Channel Network Video Recorder(NVR) for IP cameras up to 3MP w/ 8 CH PoE Input

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: NVST-TX208-16
Item #: 1536

MSRP: ~~$380.00~~
Our Price:

$259.00

(You save: $121.00)

Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

8 PoE network ports; support IPC direct connection to NVR; support PoE power supply

Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality

SYSTEM
Compression	Standard H.264 / MPEG4
CPU	Cortex A9
OS	Embedded Linux
VIDEO
Output	HDMI x 1 : 1920 x 1080 VGA x 1 : 1920 x 1080
IP INPUT
Resolution	3MP / 1080P / 960P / 720P
Frame Rate	16 CH 3MP / 1080P / 960P / 720P @30 fps
AUDIO
Input	16 CH IPC input
Output	RCA x 1
2-way audio	RCA x 1
RECORD
Resolution	3MP : 2048 x 1536, 1080P : 1920 x 1080 960P : 1280 x 960, 720P : 1280 x 720 D1 : 704 x 576
Frame Rate	400 fps ( PAL ) 480 fps ( NTSC )
Bit Rate	256Kbps ~ 12Mbps
Encode	CBR
Quality	6 Level
Mode	Manual, Timer, Motion, Sensor
File Manager	Lock, unlock, reserving time
PLAYBACK
Playback	4 CH
Search	Time/calendar search, event (motion,external alarm)
Smart Search	Highlighted date and time to display the channel record
Function	Play, Pause, FF, FB, Digital zoom
ALARM
Mode	Sensor, Motion, Video Loss
Input	4 CH local input, support IPC alarm input
Output	1 CH
Triggering	Record, alarm out, e-mail, etc
NETWORK
Interface	RJ45 10M/100M/1000M adaptive ethernet network port x 1
PoE	RJ45 x 8
Protocal	TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Others	20 users online, dual stream
CELLPHONE
OS	iPhone, Andriod
Function	Multi-screen surveillance, record, snapshot, PTZ control, save the device list
PORT
HDD	SATA x 2
RS485	RS 485 x 1, support PTZ and keyboard
USB	USB 3.0 x 1, USB 2.0 x 1, one for mouse, another for USB backup device
Remote Controller	Yes
OTHERS
Power Supply	ATX
Consumption	< 12W ( without HDD )
Dimensions	430 mm x 300 mm x 55 mm (W x D x H)
Work Environment	-10 ~ 55 °C =, 10% ~ 90% Humidity
