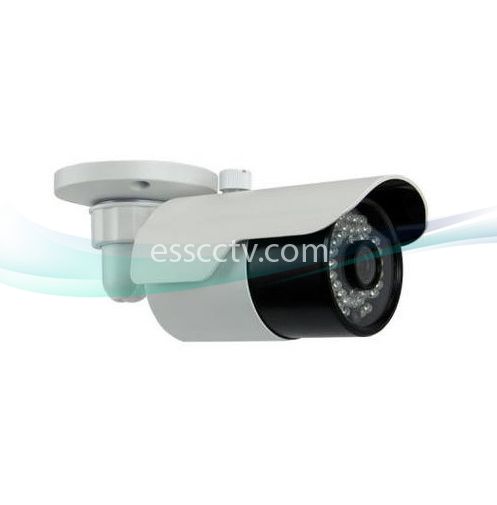

IP Power NIR-C3032F-BW Outdoor Infrared Bullet IP Camera / 3MP / Fixed Lens / 36 IR LED / PoE
Images are for illustration purpose and may not show the actual product.
Model:
NIR-C3032F-BW
Item #: 1523
MSRP:
$180.00
Our Price:
$137.00
(You save: $43.00)
- 3MP ( 2048 x 1536 ) Full Real Time Coding
- Maximum Resolution: 2048 x 1536
- ICR Auto Switch, True Day & Night
- 20 ~ 30m IR Night View Distance
- Small size, efficient heat dissipation, long lifespan
- 3D DNR, Digital WDR
- ROI Coding
- Support one-way audio and PoE power supply
- Support Smart Phone, iPad, Remote Monitoring
- Support P2P
- 3.6mm Fixed Lens
- H.264 / 36 IR LED
- Water Proof (IP66)
- DC 12V / White Casing
| CAMERA |
| Image Sensor |
1 / 3 “CMOS |
| Image Size |
2048 x 1536 |
| Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
| Min. Illumination |
0 Lux ( IR LED ON ) |
| Lens |
3.6 mm Fixed Lens |
| Lens Mount |
M12 |
| IMAGE |
| Video Compression |
H.264 / MJPEG |
| Resolution |
3MP ( 2048 × 1536 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 x 240 |
| Multi-Stream |
3MP ( 1 ~ 30fps ) / 1920 x 1080 ( 1 ~ 30fps ) 1280 x 720 ( 1 ~ 10fps ) / D1 ( 1 ~ 30fps ) / CIF ( 1 ~ 30fps ), CIF ( 1 ~ 30fps ) / 480 x 240 ( 1 ~ 30fps ) |
| Bit Rate |
64 Kbps ~ 8 Mbps |
| Encode Mode |
VBR / CBR |
| Quality |
Five levels under VBR; Freely adjustable under CBR |
| Image Settings |
ROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| FUNCTIONS |
| Remote Monitoring |
IE browsing,CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, Protocol SMTP, FTP |
| Storage |
Network remote storage |
| Smart Alarm |
Motion Alarm |
| Day & Night |
ICR |
| PoE |
Yes |
| IR Distance |
20 ~ 30m |
| Water-proof |
IP66 |
| INTERFACE |
| Network |
RJ45 |
| Audio |
One-way audio (MIC IN × 1) |
| OTHERS |
| Power Supply |
DC 12V / PoE |
| Power Consumption |
< 4W |
| IR Consumption ON |
< 7W |
| Operating Environment |
-40°C ~ 50°C, 10% ~ 90% humidity |
| Dimensions |
ø87mm × 219mm (ø3.4 in x 8.6 in) |
There are no files associated with the selected product.
