> Item #1520

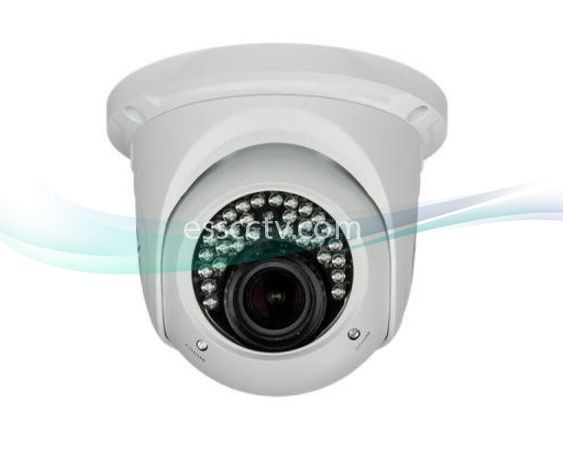

IP Power NIB-C232FV-W 2 MP IP Eyeball IR Dome Camera w/ 30 IR LEDs & 2.8~12mm Vari-focal Lens

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: NIB-C232FV-W
Item #: 1520

MSRP: ~~$180.00~~
Our Price:

$131.00

(You save: $49.00)

CAMERA
Image Sensor	1 / 3 ?CMOS
Image Size	1920×1080
Electronic Shutter	1 / 25 s ~ 1 / 100000 s
Min. Illumination	0 Lux ( IR LED ON )
Lens	2.8 ~ 12 mm Vari-focal Lens
Lens Mount	CS / ø14
Video Compression	H.264 / MJPEG
Resolution	1080P ( 1920 x 1080 ), 720P ( 1280 x 720 ), D1, CIF, 480 x 240
Multi-Stream	1920 x 1080 ( 1 ~ 30fps ) / 1280 x 720 ( 1 ~ 30fps ) / 1280 x 720 ( 1 ~ 10fps) / D1 ( 1 ~ 30fps ) / CIF ( 1 ~ 30fps ) CIF ( 1 ~ 30fps ) / 480 x 240 ( 1 ~ 30fps )
Bit Rate	64 Kbps ~ 8 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	Corridor pattern, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
FUNCTIONS
Remote Monitoring	IE browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, Protocol SMTP, FTP
Storage	Network remote storage
Smart Alarm	Motion Alarm
Day & Night	ICR
PoE	Yes
IR Distance	20 ~ 30m
Water-proof	IP66
INTERFACE
Network	RJ45
Audio	No
OTHERS
Power Supply	DC 12V / PoE
Power Consumption	< 2.5W
IR Consumption ON	< 5W
Operating Environment	-40°C ~ 50°C, 10% ~ 90% humidity
Dimensions	ø109 × 130 mm (ø4.29 x 5.12 in)
Weight (net)	659 g (1.45 lbs)
