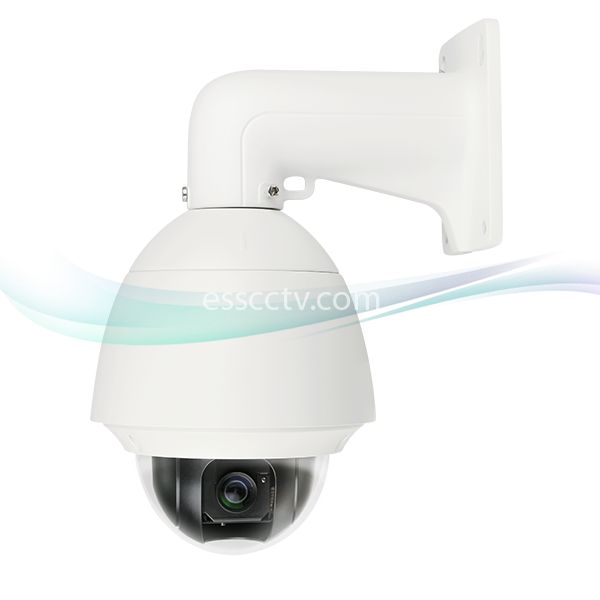

LTS PTZH742X30 2.1MP High Speed PTZ Dome HD-TVI Camera - 1080p Full HD, 30x Optical Zoom

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: PTZH742X30
Item #: 1499
Manufacturer: LT Security Inc

MSRP: ~~$800.00~~
Our Price:

$645.00

(You save: $155.00)

2.1MP High Definition

1920X1080P@30fps

1/3” CMOS

4-120mm Lens

Pan/Tilt Range: Pan: 360° Endless;
Tilt: -5°~180° (Auto Flip)

Pan/Tilt Speed: Pan Manual Speed: 0.1° ~ 250°/s,
Pan Preset Speed: 300°/s,
Tilt Manual Speed: 0.1° ~ 150°/s,
Tilt Preset Speed: 200°/s

256 Preset Positions

4 Pattern Scan, 8 Cruise

RS485 Pelco D/Pelco P, Self-adaptive

AC 24V

IP66, Outdoor/ Indoor

5" Φ

Wall Mount Bracket Included

Camera
Image Sensor	1 / 3”Sensor
Max. Image Resolution	1920X1080
Frame Rate	60Hz: 30fps (1920X1080); 50Hz: 25fps (1920X1080)
Signal System	PAL / NTSC
Min. Illumination	Color: 0.2Lux@( F1.6,AGC ON) B/W: 0.02Lux@( F1.6,AGC ON)
White Balance	Auto / Manual / ATW / Indoor / Outdoor
AGC	Auto / Manual
S / N Ratio	≥ 50dB
3D DNR	Support
Digital WDR	Support
EIS	Support
Backlight compensation	Support
Shutter Time	1-1/10,000s
Day & Night	IR Cut Filter
Digital Zoom	16X
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4-120mm, 30X
Zoom Speed	Approx.3.0s(Optical Wide-Tele)
Angle of View	58-1.7 degree(Wide-Tele)
Min. Working Distance	10-1500mm (Wide-Tele)
Aperture Range	F1.6-F4.4
Pan and Tilt
Pan / Tilt Range	Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
Pan / Tilt Speed	Pan Manual Speed: 0.1° ~250°/s, Pan Preset Speed: 300°/s Tilt Manual Speed: 0.1° ~150°/s, Tilt Preset Speed: 200°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the total recording time not less than 10 minutes
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display	On / Off
Preset Freezing	Support
Scheduled Task	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication diagnosis	Support
Input/ Output
Video Output	1 CVBS Output, 1 HD TVI Output
RS-485 Interface	Half-duplex mode, Pelco-P, Pelco-D protocol
UTC function	Self-adaptive PELCO_C
General
Menu Language	English, Chinese
Power	24VAC; Max. 20W (Heater On), Max. 12W(Heater Off);
Working Temperature	-22°F-149°F(-30 °C-65°C); 90% or less
Protection Level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact Protection	IEC60068-275Eh, 20J; EN50102, up to IK10
Dimension	Φ8.66”×12.00”(Φ220×305mm )
Weight (approx.)	11.02Ibs(5Kg)
