> Item #145

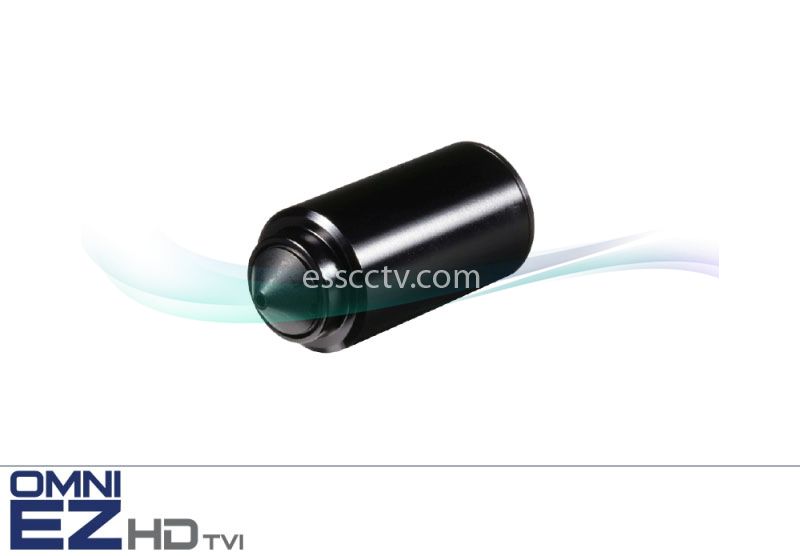

KT&C KEZ-c2CIP43 OMNI EZ HD-TVI Camera, 1080p Miniature Indoor Bullet, Pinhole lens

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KEZ-c2CIP43 OMNI EZ HD-TVI Camera, 1080p Miniature Indoor Bullet, Pinhole lens: KEZ-c2CIP43

Additional Image for KT&C KEZ-c2CIP43 OMNI EZ HD-TVI Camera, 1080p Miniature Indoor Bullet, Pinhole lens:

Model: KEZ-c2CIP43
Item #: 145
Manufacturer: KT&C USA

MSRP: $200.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

1080p HD-TVI Minature Bullet Cylinder

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

Field select 1080p 30/25

HD-TVI HD BNC output

Operation over ‘almost any’ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/2.7” progressive scan CMOS sensor

4.3mm pinhole megapixel lens to capture the desired field of view

Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- On-camera 3-axis joystick
- Programmable Back Light Compensation (BLC) and Highlight Compensation (HLC)
- Adjustable 2D Noise Reduction to increase low light picture clarity and conserve
DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery

Metal housing with 3-axis mount included

Choice of black or white housing color to blend or contrast with the décor

Operating temperature range of 14°F~122°F

12VDC operation with low current draw

Imaging Device	1/2.7" 2MP Progressive Scan CMOS
Video Format	1080p HD-TVI 30/25Hz (OSD selectable)
Picture Elements	1930 (H) x 1088 (V)
Cell Size	3.0µm x 3.0µm
Maximum Image Resolution	1920 (H) x 1080 (V)
Horizontal Resolution	More than 1080 HTVL (1080p mode)
Lens Type	Megapixel Fixed Focal Length f=3.7mm, 4.3mm board type
Video Output Connector Type	BNC 75Ω
Sync. Mode	Internal
OSD Menu	Multiple functions using on-camera 3-axis joystick and/or up-the cable (UTC) control
OSD Languages	English, Chinese
OSD Control	Full OSD Menu access via on-camera 3 axis joystick plus up-the-cable (UTC, Coaxitron® type ) signaling
Electronic Shutter	Auto, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/3000, 1/10000
BLC	(0~16 selectable)
HLC	Adjustable area, 0~255 for mask and threshold values
Auto Gain Control	1~5 (Max. 30dB)
White Balance	AUTO indoor / AUTO Outdoor / USER / PUSH / Manual
Flickerless	Off, 50Hz, 60Hz
Day/Night Type	Digital Day/Night
Day & Night	Auto, color, B/W
2D-DNR	Auto
Image Control	Flip, Mirror, Gain, Hue, Sharpness, Contrast
Motion Detection	Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask	Two, with adjustable size and position
Lens Shading Compensation	Off/On
Other OSD Functions	Camera Title with position, Font Color; Image Sharpness
Power Source	12VDC
Power Consumption	12VDC:90mA
Operating Temperature	14 °F ~ 122 °F (-10 °C ~ 50 °C)
Environmental	Indoor, 80% Max Humidity
Mechanical	Metal housing and mount; housing equipped with ¼-20 thread at rear
Positioning	3-axis flexible positioning for wall or ceiling mounting Mount included
Dimensions	KEZ-c2CIB37: Body Ø 0.9” (23mm); Overall Length* 3.23” (82mm) KEZ-c2CIP43: Body Ø 0.9” (23mm); Overall Length 3.075 (78.1mm) *Not including lens \| See diagrams for outline details.
Weight	2.15 oz. (67g)
Certifications	CE / FCC / RoHS
