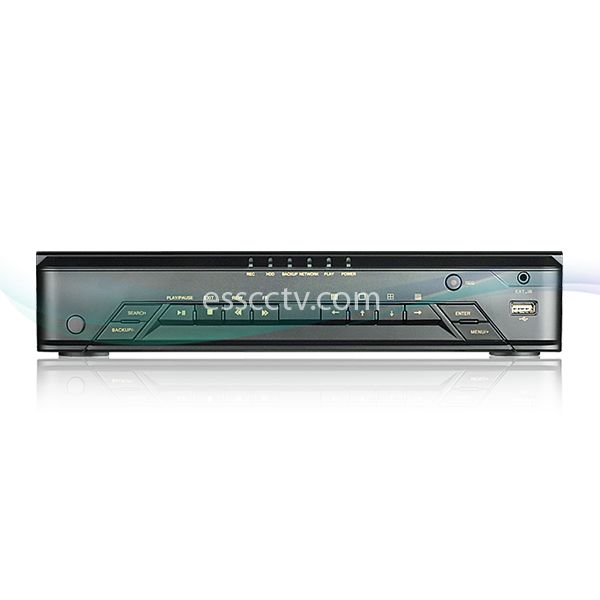

LTS LTD2708TS-M 8CH HD TVI Platinum V Advanced Level DVR Recorder - Compact Case
Images are for illustration purpose and may not show the actual product.
Model:
LTD2708TS-M
Item #: 1424
Manufacturer: LT Security Inc
MSRP:
$240.00
Our Price:
$168.00
(You save: $72.00)
- 8 Channel Digital Video Recorder
- Analog & HD-TVI Video In: 8CH
- Video Output: VGA/HDMI up to 1080P
- Playback Channel: 8CH
- Audio In/Out: 1CH/1CH, RCA
- Network: 10/100M
- Storage: 1 SATA up to 4TB
- USB: 2 USB 2.0
- PTZ: 1 RS485
- Backup: USB, Network
| Video / Audio input |
| Video compression |
H.264 |
| Video input |
8ch BNC (1.0 Vp-p, 75Ω ) |
| Audio compression |
G.711u |
| Audio input |
1-ch, RCA(2.0 Vp-p, 1 kΩ) |
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Video / Audio output |
| HDMI output |
1-ch, resolution: 1920×1080 /60 Hz |
| VGA output |
1-ch, resolution: 1920x1080,1280x1024, 1024x768, 800x600/60HZ |
| Audio output |
1-ch, RCA |
| Audio bit rate |
64 Kbps |
| Recording and Playback |
| Video bit rate |
1M-6Mbps |
| Encoding resolution |
1080P: 15fps(NTSC)/12fps(PAL) 720P:30fps(NTSC)/25fps(PAL) |
| Decoding resolution |
1080P: 15fps(NTSC)/12fps(PAL) 720P:30fps(NTSC)/25fps(PAL) |
| Dual-stream |
YES |
| Synchronous playback |
8-ch |
| Hard disk |
| SATA |
1 SATA interfaces |
| Capacity |
Up to 4TB capacity for each disk |
| External interface |
| Network interface |
1, RJ45 10M / 100M Ethernet interface |
| RS485 |
1 RS485, connect to PTZ or keyboard |
| USB interface |
2, USB2.0 |
| General |
| Power supply |
DV12V |
| Power Consumption |
≤10W (without hard disk) |
| Working temperature |
-10 °C ~ + 55 °C(14 °F - 122°F) |
| Working humidity |
10% ~ 90% |
| Dimension |
300mm x 270mm x 58 mm |
| Weight |
≤ 2kg(4.4lb) (without hard disk) |
