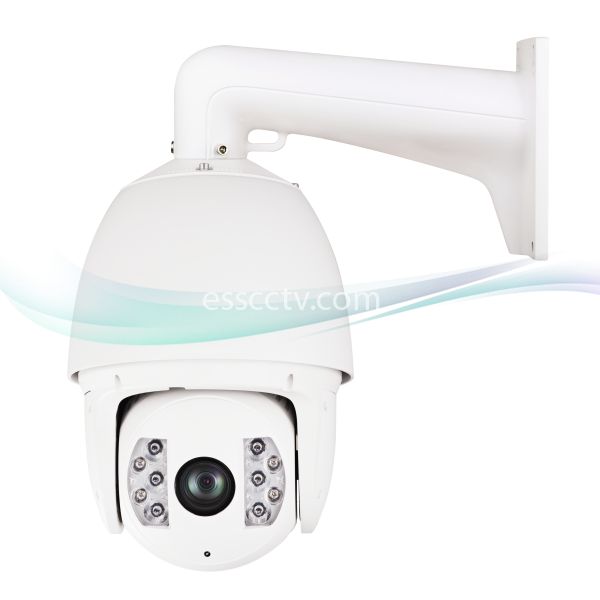

| Camera |
| Image sensor |
1/3" Progressive Scan CMOS |
| Eff ective pixel |
2230K pixels |
| Min. illumination |
Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 |
| White balance |
Auto / manual / one touch wb / atw |
| AGC |
Auto / manual |
| S / N ratio |
≥ 50dB |
| DNR |
Off / normal / expert |
| BLC |
On / Off |
| Shutter time |
50Hz: 1/25-1/100,000s, 60Hz: 1/30-1/100,000s |
| Day & night |
IR Cut Filter |
| Privacy mask |
24 privacy masks programmable; a max. of 8 zones can be masked simultaneously on the same video screen |
| Focus mode |
Auto / semiautomatic / manual |
| Lens |
| Focal length |
4.7 - 94mm, 20x |
| Zoom speed |
Approx.2.7s (Optical Wide-Tele) |
| Angle of view |
58.3 - 3.2 degree (Wide-Tele) |
| Min. working distance |
10 - 1,500mm (Wide-Tele) |
| Aperture range |
F1.6 - F3.5 |
| Pan and Tilt |
| Pan range |
360° endless |
| Pan speed |
Pan manual speed: 0.1° -160°/s, pan preset speed: 160°/s |
| Tilt range |
-2° - 90° (Auto Flip) |
| Tilt speed |
Tilt manual speed: 0.1°-120°/s, tilt preset speed: 120°/s |
| Proportional zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
| Number of preset |
256 |
| Patrol |
8 patrols, up to 32 presets per patrol |
| Pattern |
4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-o memory |
Support |
| Park action |
Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan |
| PTZ position display |
On / Off |
| Preset freezing |
Support |
| Infrared |
| IR Distance |
Up to 495ft |
| IR Intensity |
Automatically adjusted, depending on zoom ratio |
| Alarm |
| Alarm input |
7 |
| Alarm output |
2 |
| Alarm action |
Preset, Patrol, Pattern, SD/SDHC card record, Relay output, Noti cation on client |
| Input/Output |
| Monitor output |
1.0V[p-p] / 75°, NTSC (or PAL) composite, BNC |
| Audio input |
Audio input (Line input), 2-2.4V[p-p]; output impedance: 1K°, ±10% |
| Audio output |
Line level, impedance: 600° |
| Network |
| Ethernet |
10 Base-T / 100Base-TX, RJ45 connector |
| Max.image resolution |
1920×1080 |
| Frame rate |
50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720); 60Hz: 30 fps (1920×1080),30 fps (1280×960), 30 fps (1280×720) |
| Image compression |
H.264 / MJPEG / MPEG4 |
| Audio compression |
G.711ulaw / G.711alaw / G.726 |
| Protocols |
IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE |
| Simultaneous |
Live View Up to 10 |
| Dual streams |
Support |
| Mini SD memory card |
Manual REC / Alarm REC. Built-in SD/SDHC Slot, up to 32GB |
| User / host level |
Up to 16 users,3 Levels: Administrator, Camera control, Live view only |
| Security measures |
User authentication (ID and PW), Host authentication (MAC address) |
| System Integration |
| Interface for application programming |
Open-endeded AP, support Onvif, PSIA and CGI |
| Client GUI |
| Camera Control |
Pan / tilt, zoom, focus, click centering, drag zoom, iris, preset position call and program, auto mode. |
| Camera Name |
Up to 18 Characters |
| Date & Time Display |
Time: Week: Date, 6 formats on the Client |
| General |
| Menu language |
English |
| RS-485 protocols (optional) |
LTS, Pelco-P, Pelco-D, self-adaptive |
| Power supply |
24VAC/3A |
| Power Consumption |
Max. 50W (IR LED On), Max. 35W (IR LED Off ) |
| Working temperature /humidity |
-30 °C ~ 65 °C (-22 °F ~ 149 °F) (outdoor) / -10 °C ~ 50 °C (14 °F ~ 122 °F) (indoor), 90% or less |
| Protection level |
IP66 standard (outdoor dome); TVS 4,000V lightning protection, surge protect & voltage transient protection |
| Mounting |
Various mounting modes (optional) |
| Dimensions |
9.65 (D) x 15.71” (H) |
| Weight(approx.) |
5.5 kg (12.13 lbs) |
