> Item #1245

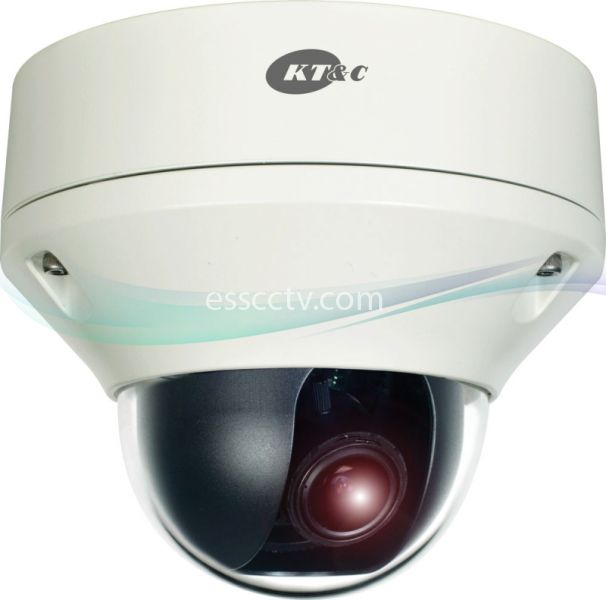

KT&C KNC-p2DR28V12 2Mp Outdoor Network Vandal Dome, 2.8~12mm Varifocal Lens

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KNC-p2DR28V12
Item #: 1245
Manufacturer: KT&C USA

MSRP: $243.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Resolution of 1920x1080~320x240, H.264 or MJPEG at up to 30FPS

Constant or variable bit rate control 1.4~8Mb/s with up to four video streams

ONVIF Profile S; Open API for integration by API, SDK

1/2.8” SONY 2.43M Progressive Scan CMOS

Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view

Electronic Day/Night

Light sensitivity of 2lux @ F2.5, DSS* off; .05lux DSS* max.
- CVBS analog service video output inside housing
- Use standard hand held test monitors

Convenient aim and focus; ease of service

Easy to use OSD setup menu
- Digital slow shutter (Sens-Up) low light enhancement (More than 2~4X enhancement should be limited to select applications.)
- Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Video motion detection
- Privacy masking
- Defog improves image contrast in the presence of haze or smoke that obscures image details
- Brightness, contrast and saturation adjust
- Image rotation

Audio in and out

Alarm trigger in and out

Micro SD card slot supports up to 32Gb of SDHC storage

Integral liner inhibits observation of camera direction

Dual power PoE class 3 (IEEE 802.3af) 2.5W or 12VDC +/- 10% 210mA

IP68 water proof, vandal proof construction

Operating temperature range of -14 °F ~ 122 °F

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

Camera
Image Sensor	1/2.8" SONY 2.43M Progressive Scan CMOS
Total Pixels (H x V)	1920x1080 2.1 Megapixel @ Maximum Resolution
Day & Night	Electronic Day/Night
Min. Illumination	.2lux @ F2.5, DSS off .05lux @ DSS max DSS levels above 4X should be used only after careful consideration of scene dynamics
Shutter Speed	1/30s ~ 1/8,000s
DWDR/BLC	DWDR: Off/Auto, Weak, Medium, Strong BLC: User controlled area and level
White Balance	Auto, Hold, Incandescent, D4000, D5000, Sunny, Cloudy, Flash, Under water
3D DNR	Level Adjust 0~255
DSS	Off/Auto
Day/Night Modes	Auto, color, B/W, with OSD controlled level and delay
Flickerless	Off, 60Hz, 50Hz
Lens
Focal Length	2.8~12mm
Lens Angle	1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)
Lens Type	Manual Varifocal, DC-iris with OSD control
Video
Compression	H.264 Main Profile & MJPEG
Supported Resolutions	H.264: 1920x1080~320x240 MJPEG: 1920x1080~320x240
Maximum Frame Rates	30FPS H.264 @ MJPEG
Bit Rate	Choice of constant or variable bit rate 1.4~8Mb/s I frame interval 1~30
Streaming	Four streams at different frame rates and bandwidth
Image Settings	Brightness, Contrast, Saturation, Sharpness, White Balance, Exposure Control, Image rotation, Text and Image overlay, Privacy Masking, BLC, AGC, D-WDR, 3D DNR, DSS (Slow Shutter Mode)
Audio
Input	Wire Leads; OSD volume control
Input Codec	G.711 a-law, µ-law 64Kb/s; G.726 variable B/W
Output	Wire Leads; OSD volume control
Output Codec	G.711 µ-law 64Kb/s
Network
LAN	Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell
Security	Multiple user access levels with password protection; IP address filter (Deny/Allow)
Protocol	IPv4, HTTP, HTTPS, TCP, RTSP, RTP, UDP, IGMP,RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, UPnP, SSL
Network Storage	Video upload to PC, FTP or NAS
VMS Compatibility	ONVIF Profile S; Open API for SDK integration
Supported Browsers	Internet Explorer (with ActiveX plug-in) support for video format change, stream play/stop, Snapshot, Instant recording (300 s. max.), Screen Magnification, Full Screen Display; Live view image popup from within Configuration menu to check image without exiting menus.
Intelligent Video
Video Motion Detection	With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output
System Integration
API	ONVIF Profile S; Open API for integration by API, SDK
Alarm & Event
Alarm Triggers	Intelligent video Motion Detection, Network Fail, SD Card Scheduling, Reboot
Alarm Events	Notify NVR, send email (with SSL server support), upload to FTP, trigger alarm output
Micro SD Card Slot	Up to 32Gb, SDHC support
General
Angle Adjustment	Pan: 0~360° Tilt: 0~75° Rotate: 0~360°
Power	PoE class 3 (IEEE 802.3af) 2.5W 12VDC +/- 10% 210mA
Interface	8P/8C RJ-45F with weather seal for Network and PoE Power (DC 12V) Input (3.5mm coaxial plug) Service Video Output (CVBS)
Environmental	IP68 (Water Proof)
Operating Temperature	-14 °F ~ 122 °F (-10 °C ~ 50 °C)
Dimension	4.21" diameter/3.82" high [107mm dia./97.1mm high] Bubble 3.15” diameter [80mm]
Weight	1.67 lbs./760 grams
Approvals
Conformity	FCC, CE
Accessories
Mounting Options	Optional KA-RCMP1 for mounting to standard electrical boxes Optional KA-RCWM1 wall mounting arm
