> Item #1243

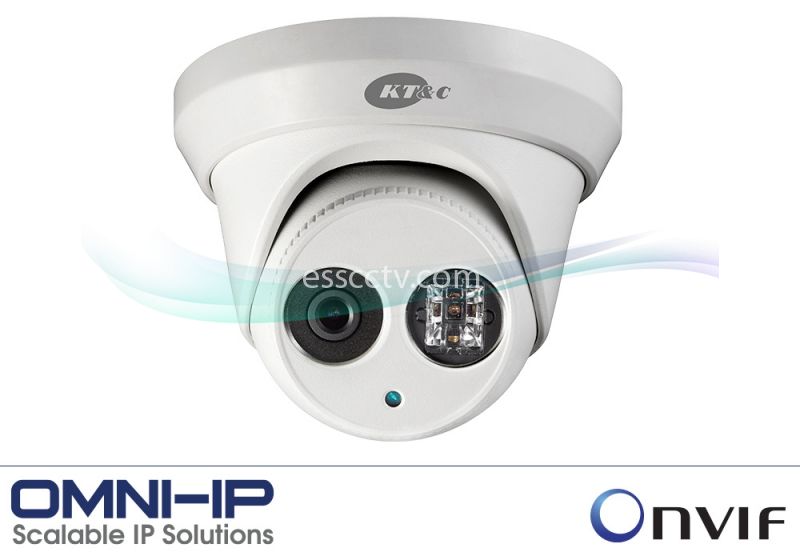

KT&C KNC-p4TR4XIR 4Mp Outdoor EXIR Network Vandal Turret Dome, Omni IP Plug-and-Play

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KNC-p4TR4XIR
Item #: 1243
Manufacturer: KT&C USA

MSRP: $280.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video

View and record 4MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor

Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)

Low light sensitivity of .01lux with
- True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity
- Low/no light coverage enhanced by EXIR Super Beam IR LED with 100 foot range
- Smart IR Control of image contrast despite bright, close in objects in scene

H.264+ substantially reduces main stream bandwidth and HDD file size when used with compatible KT&C NVRs

True 120db WDR to handle the most challenging of bright or unbalanced lighting conditions

Extensive OSD capabilities, many controlled directly from Omni IP NVR
- Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s
- Region of Interest allocates bandwidth to maximize resolution in priority areas within scene
- Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired)
- In-camera detection of motion, video loss or tampering with alarm reporting to NVR
- 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization
- DWDR compensates bright or unbalanced scene lighting
- BLC specifically for handling scenes with back lit subjects

Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view

Dual PoE/12VDC power
- PoE for efficiency and convenience
- 12VDC for legacy system upgrade or beyond PoE cable distance range

Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range

Turret style housing is adjustable for 360° pan and rotatation, with 75° tilt for flexible positoning

Support for Safari/Chrome/FireFox/IE web browsers with free plug-in

Customize installation with KA-TRWM1 Wall Arm; KA-BRPM1 Pole Mount & KA-BRCM1 Corner Mount for use with KA-TRWM1

Camera
Image Sensor	1/3" Progressive Scan CMOS
Total Pixels (H x V)	2688x1520 4 Megapixel @ Maximum Resolution
Day & Night	True Day & Night with ICR; Controllable by light sensor or via schedule
Min. Illumination	.01lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD)
IR LED	One High Power EXIR LED 850nm
IR Distance	100 ft. (30m) Nominal IR performance depends on scene reflectivity
Smart IR	OSD Controlled Off/On
Shutter Speed	1/3s ~ 1/10,000s
WDR	120dB Range; Off/On, Level Adjust
BLC	BLC: Off/Top, Bottom, Left, Right, Center Weighted, or Custom Area
White Balance	AWB; Locked; Incandesecent, Warm, Natural or Fluorescent Light
3D DNR	Off/On, Level Adjust
Lens
Focal Length (standard) Lens Options	4mm F=2.0, 2.8mm optional (KNC-pTDR3XIR)
Lens Type	Fixed focal length
Video
Supported Resolutions	Main Stream: 2688x1520; 1920x1080; 1280x720, Sub Stream: 352x240; 640x360Sub Stream: 352x240; 640x360
Maximum Frame Rates	20FPS@2688x1520 ; 30FPS@1920x1080 ; 30FPS@1280x720, 30FPS for sub stream
Compression	H.264+ Main Profile, H.264 Main Profile, MJPEG
Bit Rate	Nominal rates from drop down: 256, 512, 1024, 2048, 3072, 4096, 6144, 8192, 12288, 16384 Kbps Customized rates: 32Kbps~16384Kbps
Streaming	Dual-Stream at different frame rates and bandwidth
Region of Interest	Image detail priority/enhancement for up to four user defined areas for main and/or sub stream
Image Settings	Brightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjusable for position, size, color, etc.), Privacy masking
Network
LAN	Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell
Security	Multiple user access levels with password protection; Watermarking of captured video, IP address filter; IEEE802.1X (Authentication)
Protocol	IPv4, IPv6, HTTP, HTTPS, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, UDP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour
Network Storage	Video upload to PC, FTP or NAS
VMS Compatibility	ONVIF (Profiles S & G), PSIA, CGI, ISAPI
Supported Browsers	Internet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in)
Intelligent Video
Line Crossing Detection	Up to 4 independent boundries, each with separate sensitivity control.
Area Intrusion Detection with Loitering Time	Up to 4 independent 4-sided areas, each with separate sensitivity, percentage and loitering time control. Arming schedule by day of week and time of day.
Video Motion Detection	With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output
Alarms
Alarm Triggers	Intelligent video Motion Detection, Video Loss, Tampering, Network Disconnect, IP Address Conflict, Storage Exception
Alarm Events	Notify NVR, send email, upload to FTP, trigger alarm output
Edge Recording
NAS	Supports NFS, SMB/CFIS and ANR
General
Reset Button	Yes
Angle Adjustment	3-Axis Pan: 0~360° Rotation: 0~360° Tilt: 0~75°
Power	PoE class 3 (IEEE 802.3af) 12VDC +/- 10% 7.5W (IR on; 5.5W nominal)
Interface	8P/8C RJ-45F for Network and PoE Power (DC12V) Input
Environmental	IP66 (Weather Resistant)
Operating Temperature	-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Impact Protection	IK-10 Vandal Resistant
Dimensions	5” diameter × 3.8” high [Ø127×97]
Weight	1.5 lbs./670g
Accessories
Mounting Options	KA-TRJB1 Junction Box; KA-TRWM1 Wall Arm; KA-BRPM1 Pole Mount, KA-BRCM1 Corner Mount for use with KA-TRWM1
