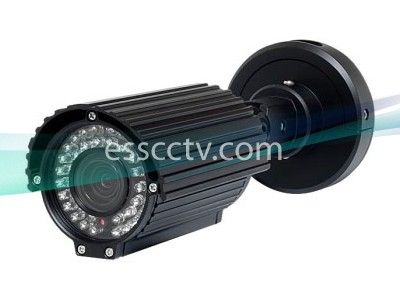

EYEMAX IR 6140EV Outdoor Night-Vision Camera: 650 TVL, 40 Smart IR, 2.8~12mm, 3D DNR, Slide Mount
Images are for illustration purpose and may not show the actual product.
Model:
IR 6140EV
Item #: 12
Manufacturer: Eyemax
MSRP:
$295.00
Our Price:
$179.00
(You save: $116.00)
- Weather-proof (IP67) : Design for outdoor installation
- 1/3” Sony Super HAD II CCD
- 2.8~12mm Auto Iris Vari-focal Lens - IR Corrected
- 650 TV Line in Color - Upgraded from 600 TVL
- OSD - On Screen Display - Easy camera setup
- 100ft Infrared Range / 40 IR LED
- 3D DNR (3D digital noise reduction) / Day & Night
- HLM (High Light Mask)
- DC 12V
Easy Installation
Eyemax camera is all about something easy to deal with. No more drill thru the camera. Just install guide mount piece and slide the camera in and lock.
SMART IR : Evenly spread Infrared Beam
Have you ever experienced with any infrared camera with intense and strong IR light, so you couldn't see anything in close range. Eyemax infrared cameras are specially designed to solve the problem. Close and long range infrared image can't be any better.
IR-CORRECTED LENS INSTALLED
Use a day & night or monochrome cameras for the IR corrected lenses. Regular color cameras will not be affected by the IR corrected lens. When using the day/night or monochrome cameras, nearly any outdoor, as well as some indoor applications, will require, or at least benefit from using IR corrected lenses. This is because many natural light sources also contain infrared light, lighting changes with a higher infrared, lower infrared, or without infrared at all. When using ordinary lenses, the result is a blurred, or in a worst case scenario, a completely unfocused picture.
|
Resolution |
650 TV Line |
Sensor |
1/3 inch Sony Super HAD II CCD |
Total Pixels |
811(H) x 508(V) 410K pixels (NTSC) |
Effective Pixels |
768(H) x 494(V) 380K pixels (NTSC) |
Scanning System |
2:1 Interface |
S/N (Y signal) |
More than 52 dB (AGC Off) |
Frequency |
Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) |
Video Output |
CVBS : 1.0 Vp-p Comp. 75Ω |
Minimum Illumination |
0 Lux (IR On) |
White Balance |
ATW / AWC / PUSH / MANUAL |
Electronic shutter speed |
Auto / Manual (1/60sec ~ 1/100,000sec) (NTSC) |
O.S.D |
Built-in |
Backlight Compensation |
BLC : Low / Middle / High / Off Selectable HLM : Adjustable |
Auto Gain Control |
Low / Middle / High / Off Selectable |
3D DNR (3D digital noise reduction) |
Low / Middle / High / Off Selectable |
WDR (Long and Short exposure) |
ON / OFF Selectable |
Day & Night |
Auto / Color / B&W / CDS |
Privacy |
On / Off (6 zone) |
Motion Detection |
On / Off (240 Zone) |
Image Conversion |
Freeze / V-Flip / H-Flip / Rotate / NEGA : All On / Off Adjustable |
DIS (Digital Image Stabilizer) |
On / Off |
LSC (Lens Shading Compensation) |
On / Off |
Sharpness |
Adjustable |
Operating Temp. / Humidity |
-10°C~+50°C(14°F ~ 122°F) / 30~80% RH |
Storage Temp. / Humidity |
-20°C~+60°C(-4°F ~ 140°F) / 20~90% RH |
Power Source |
DC 12V |
