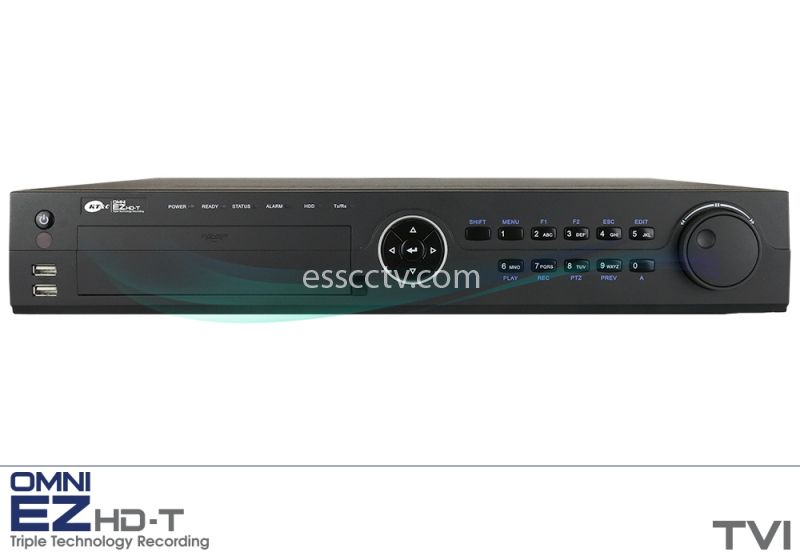

KT&C EZHD-TVF32 OMNI EZ HD-TVI System 32ch DVR, 1080p/720 record, Triple Recording

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: EZHD-TVF32
Item #: 1191
Manufacturer: KT&C USA

MSRP: $1,900.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

This Model has been discontinued.
Please follow the link for our recommended replacement: TVST PHD-32T

32 Channel HD-TVI DVR
Triple Technology Recording - works with HD-TVI, analog, and OMNI IP cameras

Triple Technology Recording: Connect 8 additional OMNI-IP Plug-and-Play or ONVIF cameras at up to 1080p resolution without sacrificing BNC inputs; configure up to 40 channels as 8 BNC + 8 IPC + mix match 24 more BNC and/or IP channels

Intelligent Video Inputs: connect 1080p/720p EZHD HD-TVI or 960H/SD analog to ANY input at any time
- Reuse existing analog cameras or choose any mix of HD/SD on new systems
- Upgrade any analog camera to megapixel at any time
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
- Useful digital zoom on live view and playback
- Field select 1080p or 720p, 30/25 Hz or 60/50 Hz

Analog HD operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).

Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
- 1080p recording at up to 12FPS per camera
- Real-time recording on any/all chanells at 720p, WD1 or SD resolution
- Playback any/all cameras at up to record rate
- Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.

Up-the-cable control [UTC] to access compatible camera OSD menus from the recorder’s PTZ controls (local or remotely)

H.264 Compression for efficient HDD utilization
- Four internal hard drives for up to 16Tb of internal storage, plus eSATA port; HDD redundancy option
- Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
- Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote viewing
- Watermarking for validation of recorded video
- Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event

Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel

Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)

HDMI/VGA monitor outputs for up to 1080p HD display detail

User friendly GUI with graphical icons, visual indicators and multiple language support
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or included IR remote

Quickly locate and review event video
- Use Video Content Analysis event detection on one BNC channel
- Line crossing (with direction) up to four lines
- Area intrusion (with loitering time) up to four areas
- Rapid fast forward can scan quickly between VCA events, yet plays events at normal speed
- Use “Smart Search” to define an area of interest; the recorder quickly reviews recorded video to list instances of motion in that area for review by the operator
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Tag video of interest for easy retrieval or export
- Play based on results of extensive event/alarm log search

Digital Zoom with Virtual PTZ in Live & Playback

Privacy masking (4 zones) to block observation of specific areas within the field of view

Audio Inputs (5) and Output (1) for recording and/or two way audio

Alarm inputs (16) and outputs (4) to interface with local hardware

Ethernet gigabit interface for remote network viewing and control, and to connect IP cameras

Multiple Control Inputs: local mouse/hand held IR remote controller (both included); web browser and CMS controls

On-screen PTZ control via mouse or IR remote

USB 2.0 ports on front and one on rear panel for video archive and mouse usage

Free DDNS Service – static IP address is not required for reliable remote access

IE, Chrome, Firefox and Safari browser Web clients

Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/16 playback views

Remote configuration support from built-in web interface and/or free OMNI CMS program

Free iOS and Android apps:
- Scroll though single/quad display live views
- Playback specific cameras by date/time plus easy slider control
- Audio monitoring support
- PTZ and relay control
- Up to 16 camera views from HD tablets (HD app)

Intelligent Video Inputs	Analog EZHD/SD Inputs		32
	HD Video Resolutions		EZHD / HD-TVI 720p30(25), 720p60(50), 1080p30(25)
	Analog CVBS Video Input		Up to 960x480,720x480(NTSC); 960x576,720x576(PAL)
	Adaptive BNC Ports		Input Format Auto Detection, EZHD/SD can be mixed in any combination, at any time
	Interface		BNC Connector; 1V p-p, 75Ω
	Privacy masking		4 areas programmable in OSD menu
	Additional IP Channels (up to 2Mpixel)		8 (Omni IP Plug-and-Play or ONVIF)
	Total Cameras Supported		40 (8 IPC, 8 BNC, 24 mix/match between BNC & IPC; max 32 IPC plus 8 BNC or 32 BNC plus 8 IPC)
Video Output	Main HDMI & VGA		Full HD 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz
	Display Modes		1, 2x2, 1+5, 1+7, 3x3, 4x4, 5x5, 6x6 split per view; two predefined views, plus ad-hoc views. User Defined Sequence / Alarm Pop-up
Recording	Video Compression		Dual Stream: H.264 for Main Stream and Sub-stream
	Video Bitrate		32Kb/s~6Mb/s each channel
	Encoding	Main Stream	1080p; 720p; WD1; 4CIF; VGA; CIF
		Sub Stream	WD1, 4CIF; CIF; QVGA; QCIF
	Frame Rate	Main Stream	1/16 fps ~ Real time frame rate at 720p, to 12FPS at 1080p
		Sub Stream	1/16 fps ~ Real time frame rate
	Quality		6 levels: Lowest/Lower/Low/Medium/Higher/Highest
	Mode		Continuous; Motion; Alarm; Motion or alarm, Motion + Alarm, VCA
	Motion and VCA Detection		Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day
	Schedule Period		Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
	Pre/Post- Event Recording		Pre-record 0~30 seconds; post record 5s~10 minutes
Playback	Synchronous Playback		32 channels
	Playback Resolution		1080p, 720p, WD1, 4CIF, VGA, CIF, QVGA, QCIF
	Search Type		Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video
	Capacity		Up to record rate
	Playback Controls		Play; Pause; Forward/Reverse; speed control for single~1.8~16X; jog/shuttle Slide bar with overview of record type and snapshot display from slider position VCA based accelerated playback between normal play of VCA events
	Digital Zoom During Playback		Supported on Local Displays and CMS
Event & Alarm	Event Source		MD (Motion Detection), Video Loss, Video Tampering/Exceptions; Video Content Analysis: Line Crossing with Direction (4 lines); Area Intrusion (4 areas) for one BNC channel.
	Event Action Schedule		Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
	Event Action		Buzzer, E-mail, Alarm Full Screen Pop-up, Notify CMS Client, trigger alarm output
	MD Area		User selectable grid pattern 22x15 areas with adjustable per camera sensitivity
System Alarm	Alarm Source		HDD Error, HDD Full, LAN Fail/Address Conflict, Illegal login, Video Signal Exception/, Record/Capture exception
	Alarm Action		Buzzer, E-mail, Notify CMS Client (network permitting), trigger alarm output
Audio	Two-way audio		Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output
	Input		4 Inputs for record, 1 input for two way audio; RCA, 2V p-p, 1KΩ
	Output		1 Output; RCA, 2V p-p, 1KΩ
	Compression		Up to 64Kbps, G.711u
Network	Interface		10M/100M/1000M adaptive Ethernet RJ-45
	Addressing		Static IP, DHCP, xDSL support
	NTP/DST		Supported; choice of time zone, NTP server, DST start/end/offset
	Protocols Supported		TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS, KT&C Plug-and-Play (for connected IP Cameras), OMNI Utility Device Discovery
	NAT		uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function)
	Users		Up to 128 simultaneous connected users
	DDNS		Simple DDNS free service tracks WAN IP address and HTTP port
Security	User IDs		“Admin”, plus multiple configurable login IDs
	User Levels		All rights for “admin”; Per camera per user rights assignment for Operator and User levels
	User Privilege Control		Local and remote access to Live views, audio, recording, playback, menus, PTZ, alarms, copy, logs, upgrade, reboot
Storage & Clip copy	HDD Storage		4 SATA HDD up to 4Tb each
	eSATA		One, on rear panel
	NAS/SAN		up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
	Copy Type		Multi-Channel or Single Channel File
	Copy Device		USB 2.0 Drive (2 ports) or eSATA
	S.M.A.R.T.		Temperature, duration, error rates, bad sector detection, and more
Serial & I/O	USB 2.0 Ports		Two front, one rear for mouse and data I/O
	Serial Port		1 RS-232C (future use)
	RS-485		One; selectable speed and bit pattern; multiple protocols (Pelco P, Pelco D, others)
	Inputs		16 alarm inputs
	Outputs		4 alarm outputs
	Keyboard		Input for external control keyboard
	Up the Cable Control		Multiple protocols, can be sent out of any BNC port to compatible cameras
User Controls	Local Controls		Front Panel camera, function and navigation buttons; IR Remote; Mouse
Software	Web Viewer		Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed)
	User Rights Control		Per user-per camera for multiple functions
	Mobile Viewer		iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras
	CMS		Free PC and MAC Clients support multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback
	Event Logging		Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type
	Firmware Upgrade		From USB or remotely
	Backup/Restore Configuration		From USB or remotely
General	Dimension (W x H x D)		17.5” x 15.3” x 2.7” 445 × 390 × 70mm
	Chassis Type		19” rack-mountable 1.5U chassis
	Weight without HDDs		11 lb. / 5Kg
	Operating Temp		14°F~131°F (-10°C~55°C)
	Operating Humidity		10% ~ 90%
	Voltage		100~240 VAC 47~63Hz
	Power		Up to 65W
	Certifications		FCC, CE, RoHS
