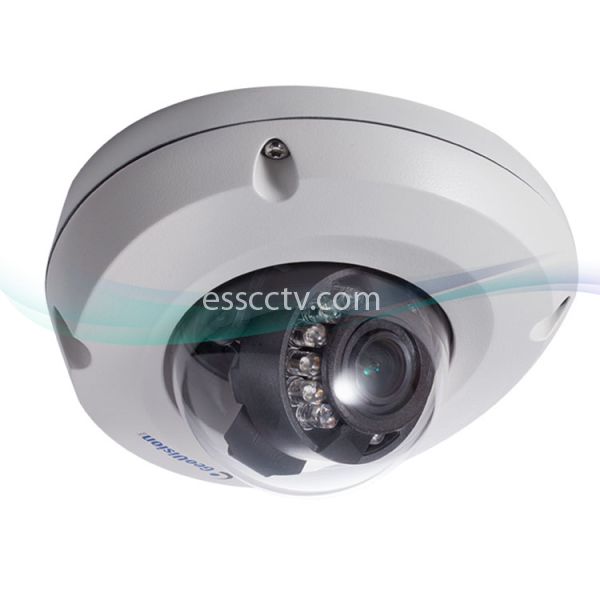

GEOVISION GV-EDR1100 Target Series IP Network Rugged Dome Camera 1.3 MP, WDR, IR, ICR
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
GV-EDR1100
Item #: 1112
Manufacturer: GeoVision
MSRP:
$240.00
Our Price:
$154.00
(You save: $86.00)
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axis (pan and tilt) and can be connected through PoE.
- 1/3" progressive scan low lux CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Intelligent IR
- Day and night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 2-axis mechanism (pan / tilt)
- Wide Dynamic Range (WDR)
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- DC 12V / PoE
- Megapixel lens
- NAS Recording
- Recording assigned by GV-Edge Recording Manager (Windows, Macversion)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Packing List
- Target Mini Fixed Rugged Dome
- Screw x 2
- Screw Anchor x 2
- Focus Adjustment Clip
- Installation Sticker
- Conduit Converter
- RJ-45 Connector
- Waterproof rubber set (for RJ45)
- Waterproof rubber set (for RJ45 and DC12V)
- Torx Wrench
- Silica Gel Bag x 2
- Sticker (for Silica Gel Bag) x 2
- Concave hexagon Wrench
- Ruler
- Screw for Conduit Converter x 2
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software DVD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
|
Note: Specifications are subject to change without notice.
| Geovision |
| Model |
GV-EDR1100 |
| Image Sensor |
1/3" progressive scan low lux CMOS |
| Megapixels |
1.3 MP |
| Minimum Illumination |
0.05 Lux Color; 0.03 Lux B/W |
| Electronic Shutter Speed |
Automatic , Manual (1/5 – 1/8000 sec.) |
| Day & Night |
Yes (with removable IR-cut filter) |
| IR LED |
12 IR LED`s up to 50 ft |
| Focus |
Fixed |
| Lens |
2.8 mm, F/2.0, 3.8 mm F/1.8 |
| Video Compression |
H.264 / MJPEG |
| Max. Image Resolution |
1280 (H) x 1024 (V) |
| WDR |
Yes |
| Frame Rate |
30 fps at 1280 x 1024 |
| Communication Interface |
10/100 Ethernet |
| Power Supply |
12VDC / PoE |
| Power Consumption |
5.8 W |
| Operating Temperature |
-30°C ~ 50°C (-22°F ~ 122°F) |
| Humidity |
10% to 90% (no condensation) |
| IP Rating |
IP67 |
| Vandal Resistance |
IK10 |
| Dimensions |
4.49" x 2.47" |
| Weight |
1.32 lb |
